Can Bus Splice Block 6 (Standard) Connector End View (D3202A)

Harness-Family: FASCIA_REAR

Color: GRAY

Gender: FEMALE

Part Number: 7283-8856-30_7182-9633-40

Part Description: Not Available

Connector No: D3202A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Can Bus Splice Block 6 Connector End View (Standard)
GCWD1249425Courtesy of CHRYSLER

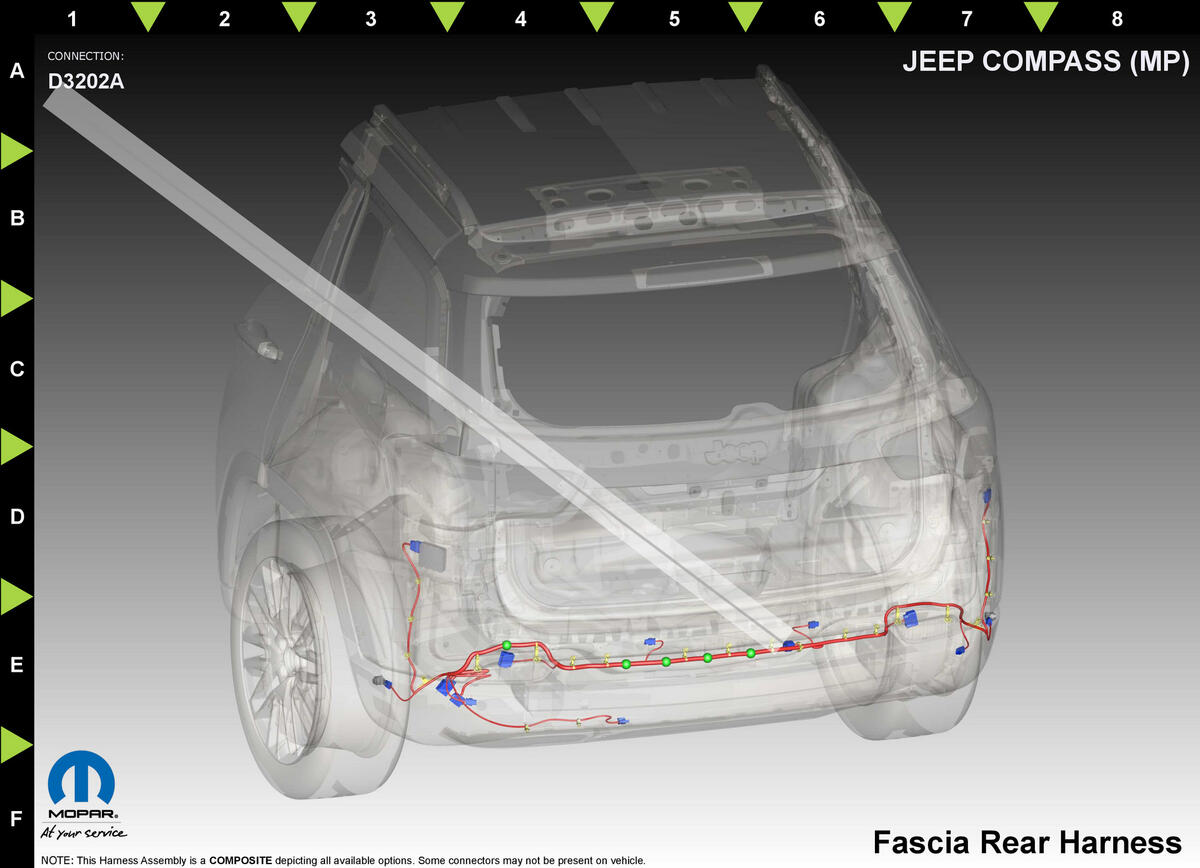

Fig 2: Can Bus Splice Block 6 Component Location (Standard)
GCWD1294667Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D17 OG 0.50 CAN IHS (+) N/A
2 D17 OG 0.50 CAN IHS (+) N/A
4 D18 WH/OG 0.50 CAN IHS (-) N/A
5 D18 WH/OG 0.50 CAN IHS (-) N/A
6 D215 DB/WH 0.50 CAN IHS (+) N/A
7 D217 DG/WH 0.50 CAN IHS (+) N/A
9 D216 WH 0.50 CAN IHS (-) N/A
10 D218 WH 0.50 CAN IHS (-) N/A
(1) Pins not listed are not used for this connector
