Relay-Power Outlet-Rear (On PCB) (Standard) Connector End View (D8661A)

Harness-Family: PDC_Front

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: D8661A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Power Outlet-Rear (on Pcb) Connector End View (Standard)

Courtesy of CHRYSLER

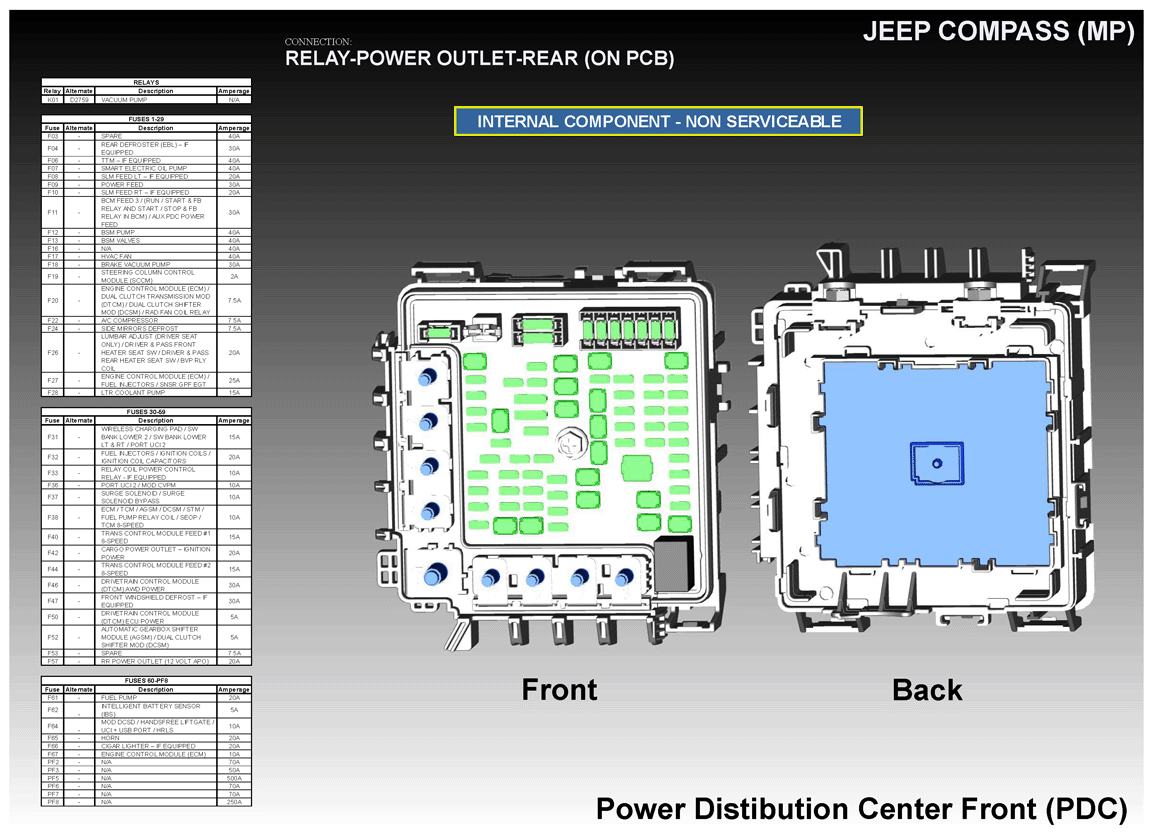

Fig 2: Relay-Power Outlet-Rear (on Pcb) Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F925

INTERNAL

FUSED IGNITION RUN CONTROL OUTPUT

N/A

Z913

INTERNAL

GROUND

N/A

F927

INTERNAL

FUSED IGNITION

N/A

⁽¹⁾	Pins not listed are not used for this connector
