Relay-PCR Control (On PCB) (Standard) Connector End View (D917)

Harness-Family: PDC_Front

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: D917

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Pcr Control (on Pcb) Connector End View (Standard)

Courtesy of CHRYSLER

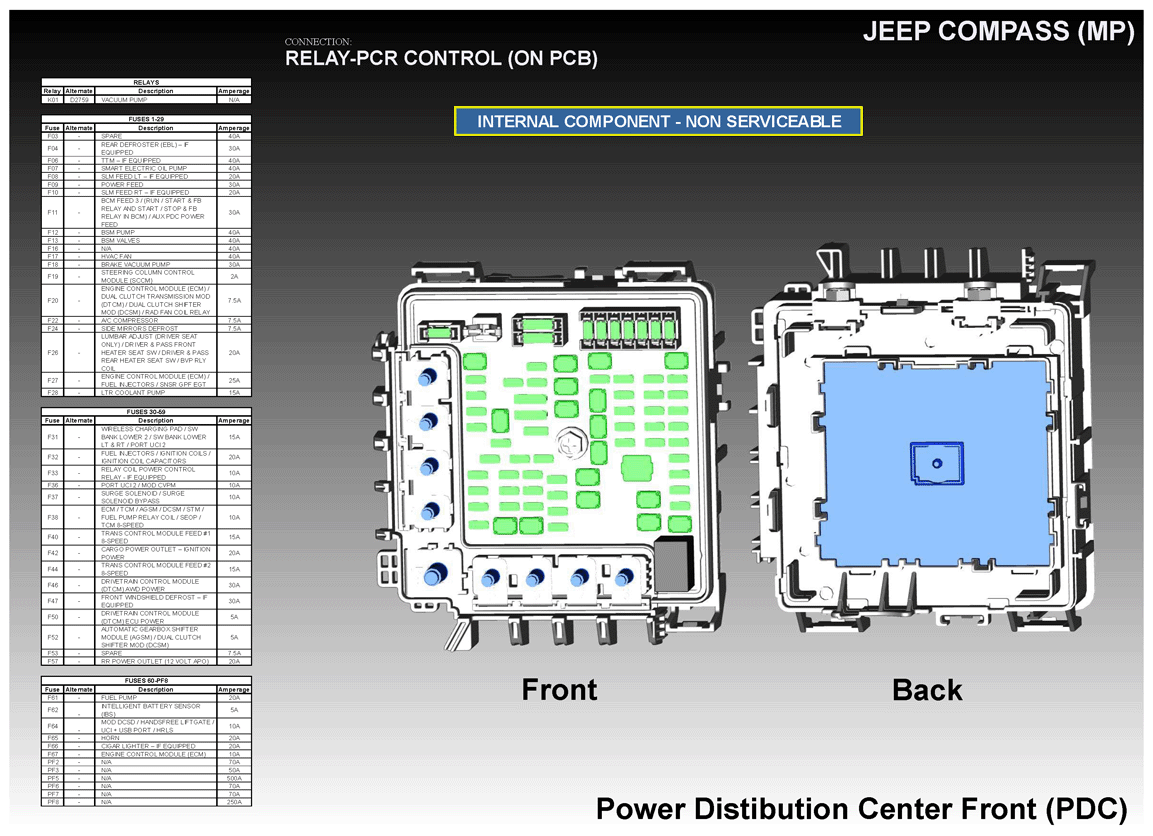

Fig 2: Relay-Pcr Control (on Pcb) Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F741

INTERNAL

FUSED IGNITION RUN/START

N/A

INTERNAL

FUSED B(+)

N/A

T762

INTERNAL

PCR RELAY CONTROL

N/A

T760

INTERNAL

PCR CONTROL RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
