Sensor-Occupant Detection-Passenger (Standard) Connector End View (D2457A)

Harness-Family: Seat_Pass

Color: BLACK

Gender: MALE

Part Number: 7122-8326-30

Part Description: Not Available

Connector No: D2457A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Sensor-Occupant Detection-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

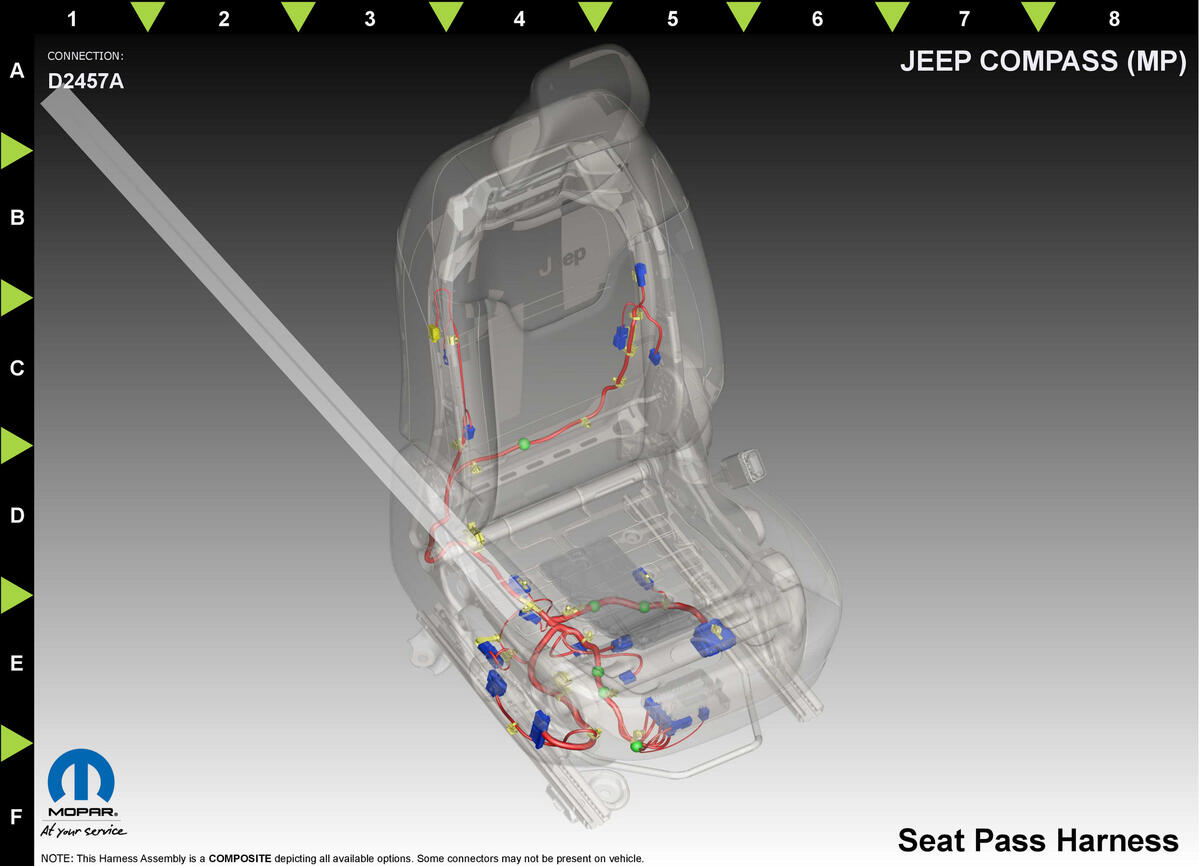

Fig 2: Sensor-Occupant Detection-Passenger Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R283

BU/DG

0.50

PASSENGER SEAT OCCUPANT DETECTION SIGNAL

N/A

R730

BU/BK

0.50

PASSENGER SEAT DETECTION RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
