Removal And Installation: Installation

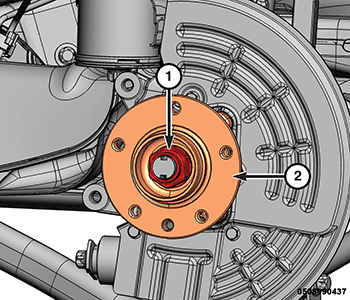

- Position the hub and bearing (2) against the knuckle.

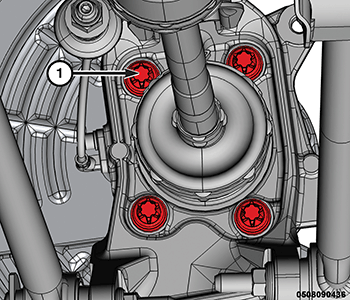

- Install four NEW
rear hub and bearing bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- On AWD models, install a NEW
rear hub nut (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

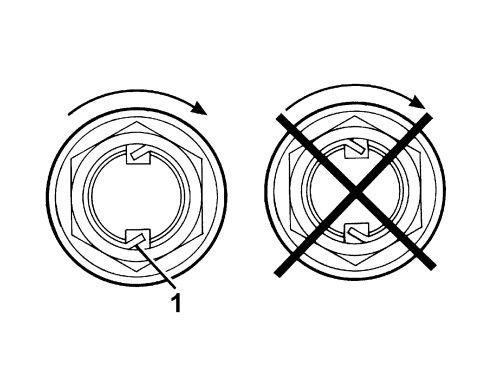

- Using (special tool #10287-1, Tool, Staking) stake the hub nut as shown in illustration (1).
- Install the rear brake rotor. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .
- Install the tire and wheel assembly. Refer to TIRES & WHEELS, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
