Removal And Installation: Installation

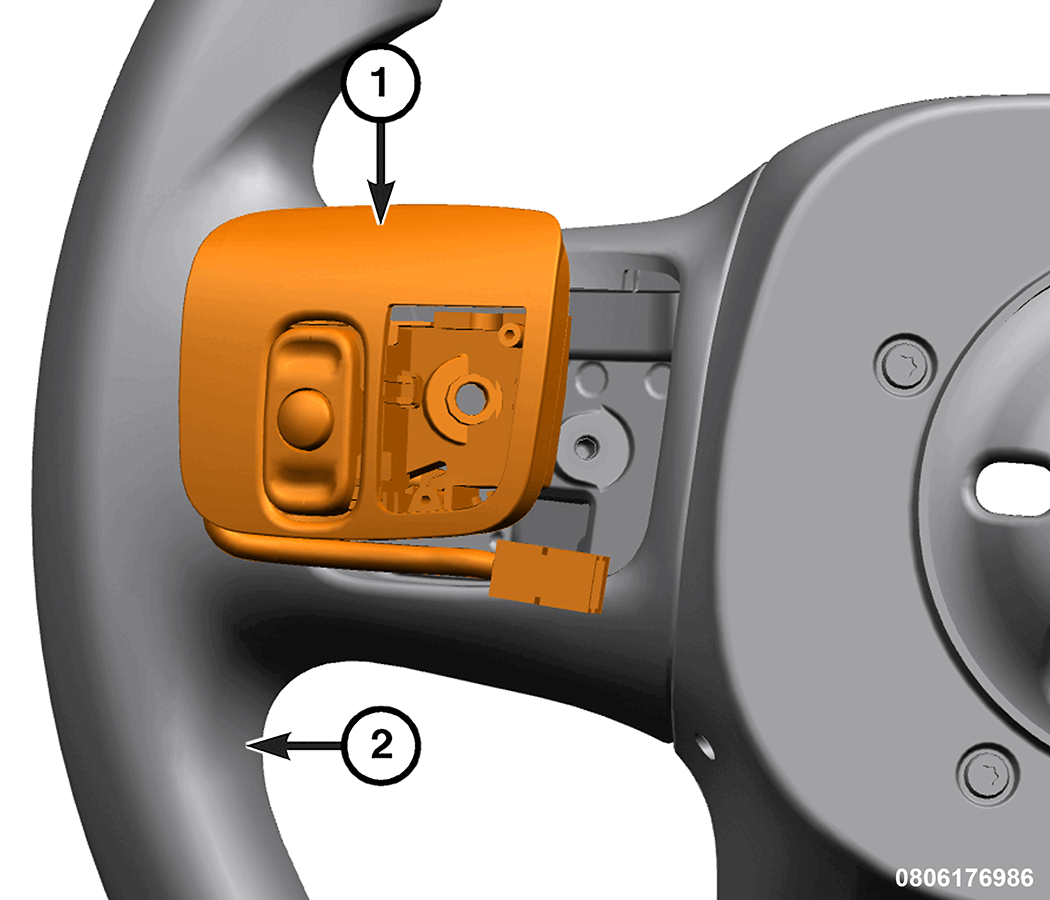

- Position the remote radio switch (1) into the steering wheel armature (2), carefully routing the wire harness through the steering wheel.

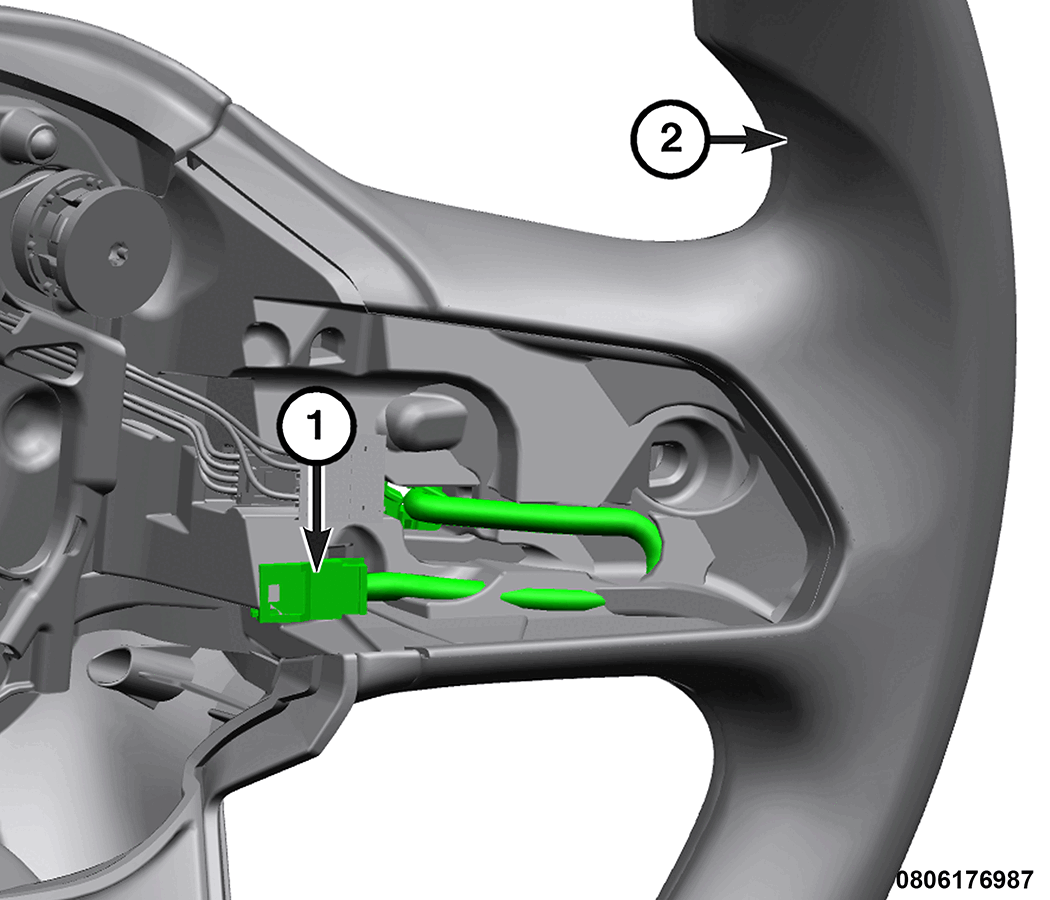

- Connect the remote radio switch wire harness connector (1).

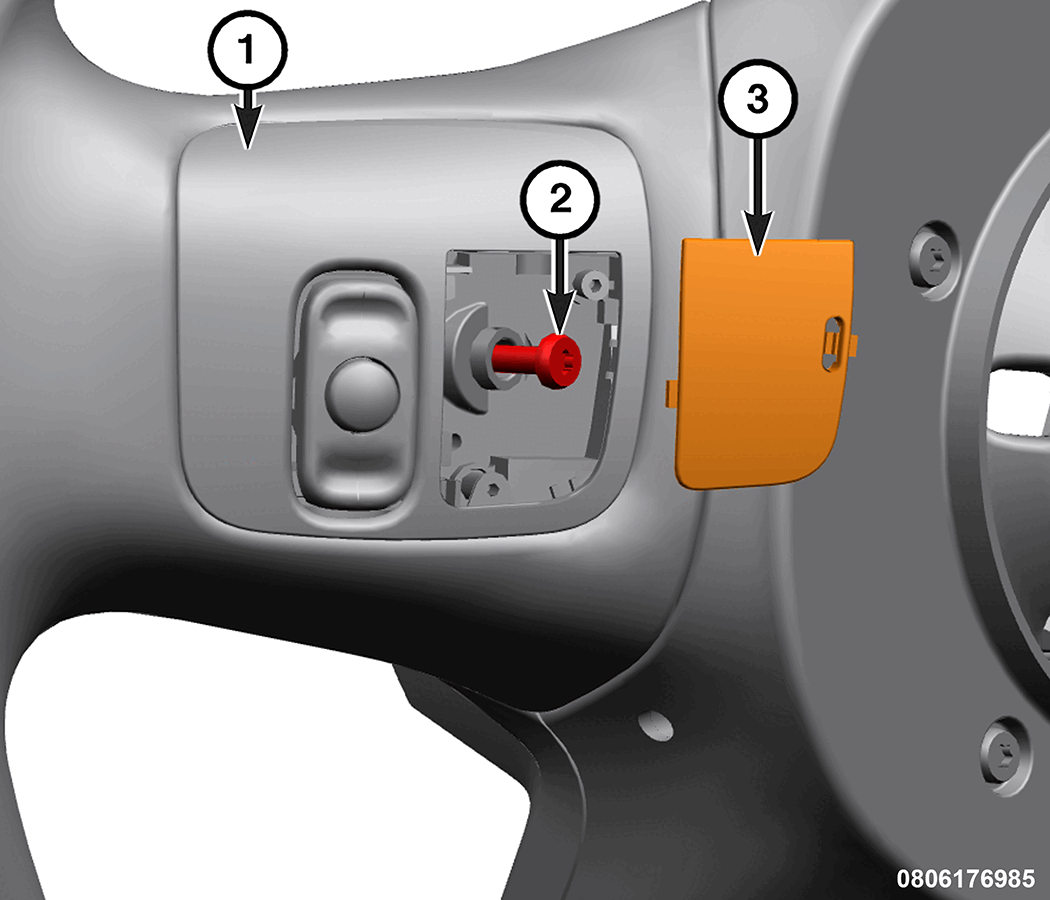

- Install the screw (2) and tighten securely.
- Install the screw cover (3).
- Repeat steps for other remote radio switch.
- Install the EVIC switches. Refer to SWITCH, EVIC CONTROL, REMOVAL AND INSTALLATION .
- Install the Speed Control Switches. Refer to SWITCH, SPEED CONTROL, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
