Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

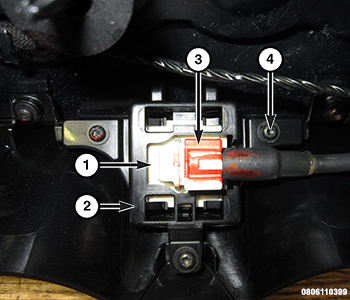

Position the Rear View Camera (RVC) (1) onto the lamp bar.
Install the RVC bracket (2) and securely tighten the screws (4) that secure the bracket to the lamp bar.
Connect the liftgate jumper wire harness connector (3) to the RVC (1).
Install the liftgate lamp bar. Refer to LAMP BAR, EXTERIOR HANDLE, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
