Resistor-Radiator Fan 1 (Standard) Connector End View (D8126A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 15336024

Part Description: Not Available

Connector No: D8126A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Resistor-Radiator Fan 1 Connector End View (Standard)

Courtesy of CHRYSLER

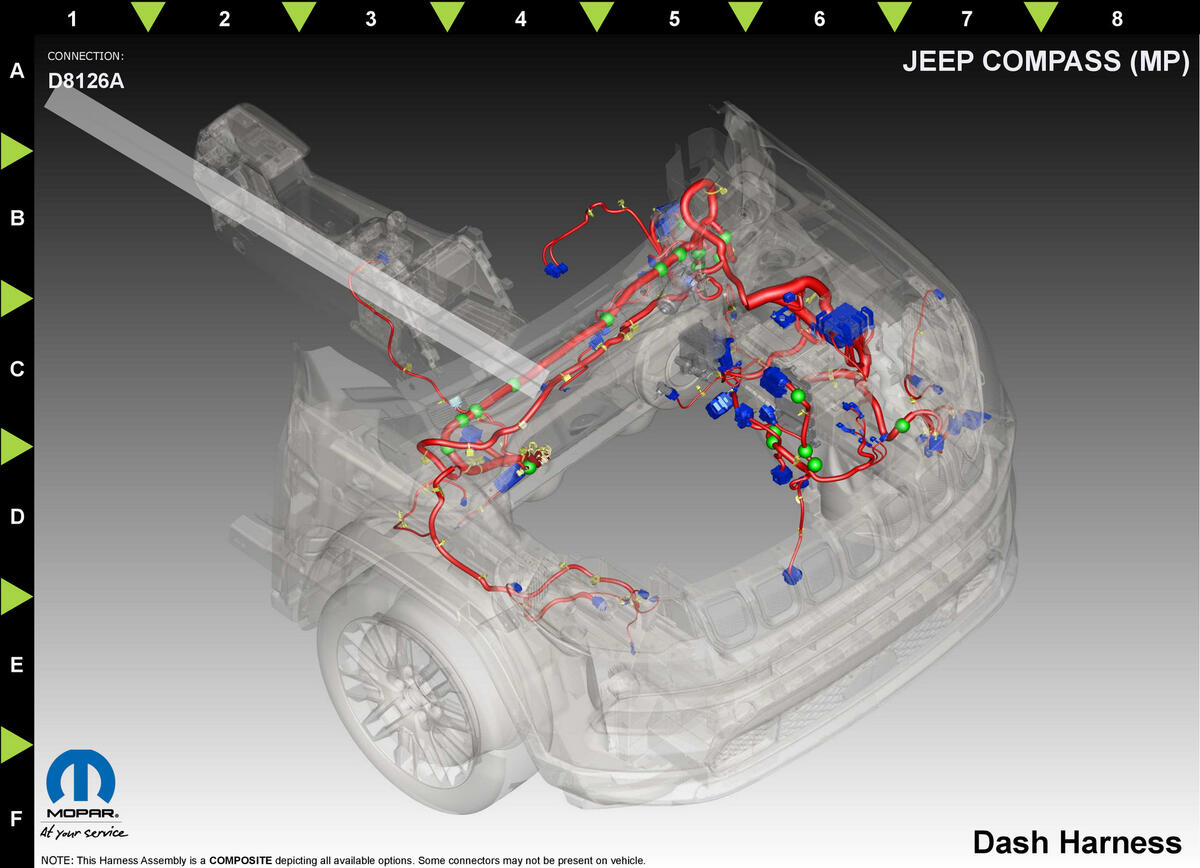

Fig 2: Resistor-Radiator Fan 1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N29

DB/BU

0.50

RADIATOR FAN ENABLE SIGNAL

N/A

Z913

BK/VT

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
