Sensor, Air Temperature, Inlet: Installation

Courtesy of CHRYSLER GROUP, LLC

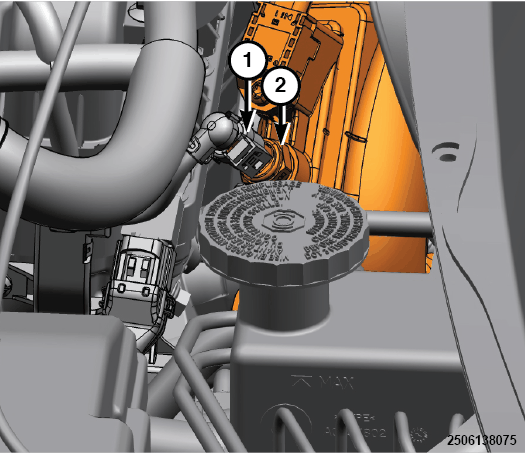

1. Install the Inlet Air Temperature (IAT) sensor (2).
2. Connect IAT sensor wire harness connector (1).
3. Install the engine covers. Refer to COVER, ENGINE, INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
