Module-Inverter 110VAC (Standard) Connector End View (D3920A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1456471-1

Part Description: Not Available

Connector No: D3920A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Inverter 110vac Connector End View (Standard)

Courtesy of CHRYSLER

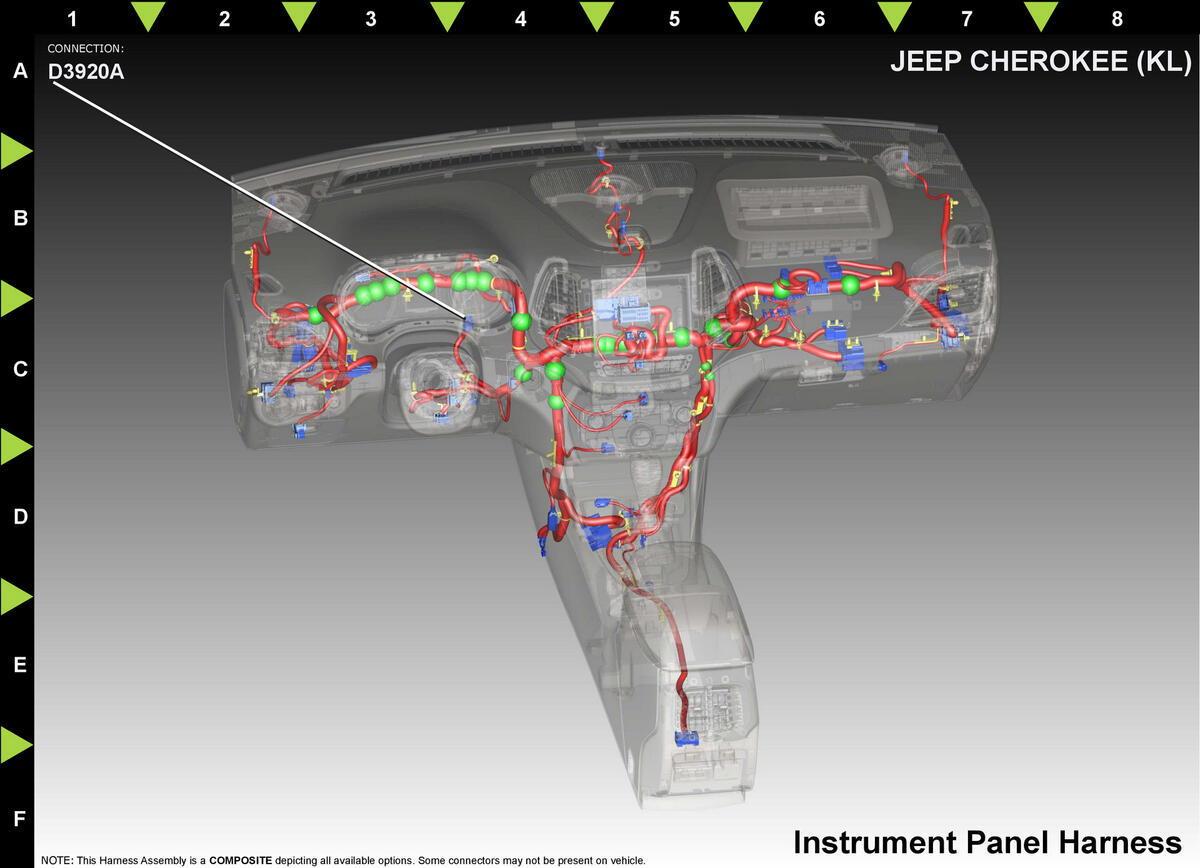

Fig 2: Module-Inverter 110vac Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P802

GN/OG

1.0

110 VOLT AC LINE 2

N/A

A401

RD/GN

2.0

FUSED B(+)

N/A

P801

1.0

110 VOLT AC LINE 1

N/A

P805

GN/DB

0.50

110 VOLT AC LINE 3

N/A

Z914

2.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
