Module-Drive Train Control C2 (Standard) Connector End View (D3872B)

Harness-Family: Under_Body

Color: GRAY

Gender: FEMALE

Part Number: 7283-6466-40

Part Description: Not Available

Connector No: D3872B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Drive Train Control C2 Connector End View (Standard)
GCWD1006433Courtesy of CHRYSLER

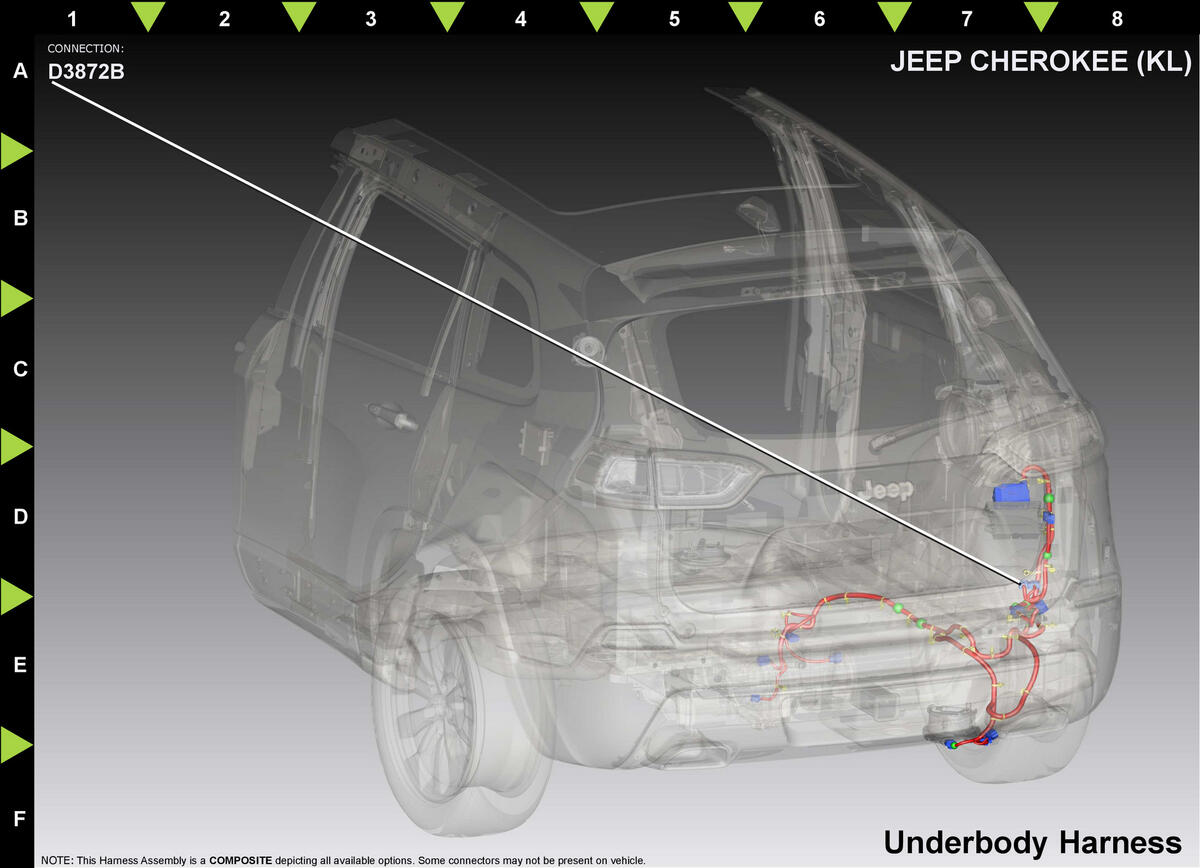

Fig 2: Module-Drive Train Control C2 Component Location (Standard)
GCWD1297193Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z924 BK 3.0 GROUND N/A
2 T316 YE/GY 12 PUMP MOTOR CONTROL B N/A
4 A194 RD/GY 3.0 FUSED B(+) N/A
5 T315 YE/BN 12 PUMP MOTOR CONTROL A N/A
(1) Pins not listed are not used for this connector
