Sensor, Fuel Pressure: Installation

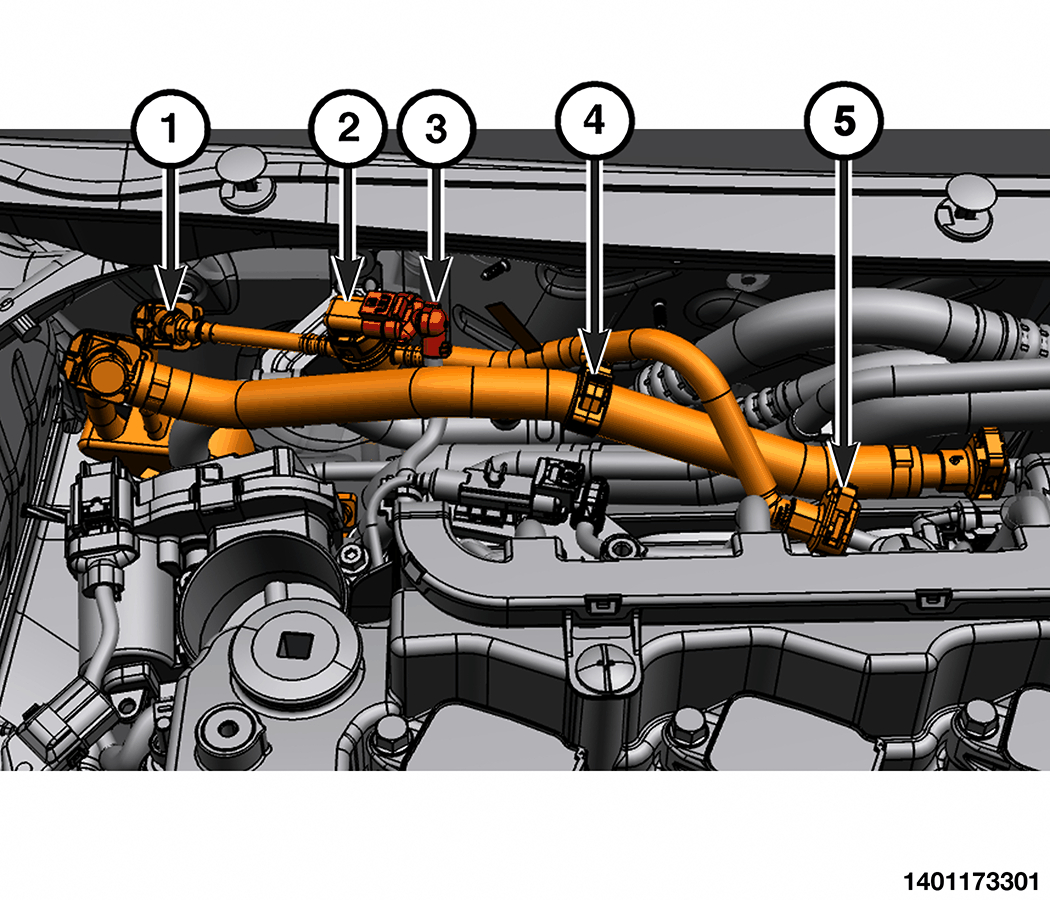

GC0200035Courtesy of CHRYSLER GROUP, LLC
  1. Position the fuel line and connect the fuel supply line quick connectors (1, 5). Refer to QUICK-CONNECT FITTINGS .
  2. Install the retainer (4) securing the fuel line.
  3. Connect the Fuel Pressure Sensor wire harness connector (3).
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  5. Start the engine and check for leaks.
  6. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
