EGR System

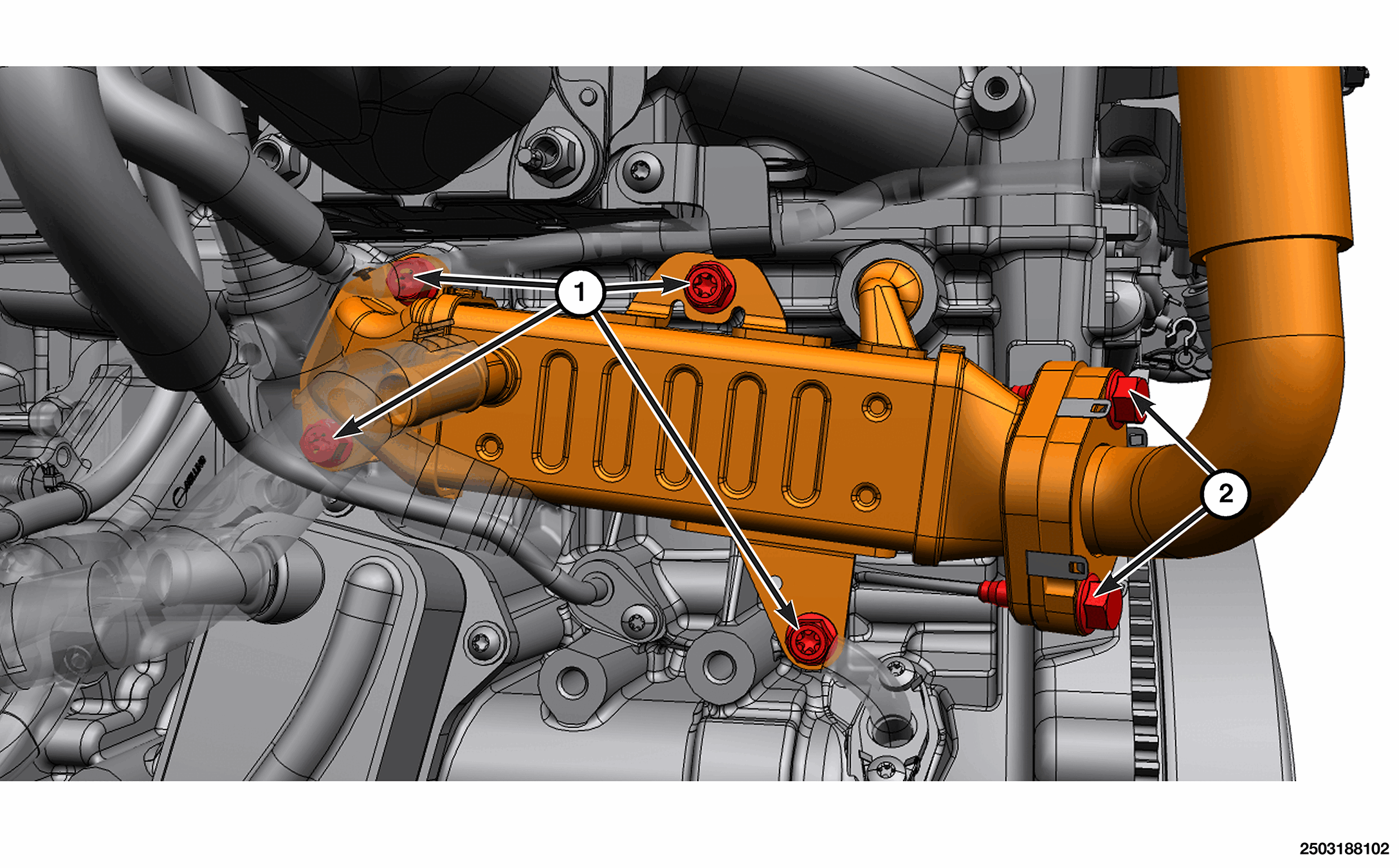

GC0203375

Courtesy of CHRYSLER GROUP, LLC

TORQUE SPECIFICATIONS - EGR SYSTEM (1 OF 2)

1	EGR Cooler To Cylinder Block	25 N. m (18 Ft. Lbs.)	-
2	EGR Pipe To EGR Cooler	30 N. m (22 Ft. Lbs.)	-

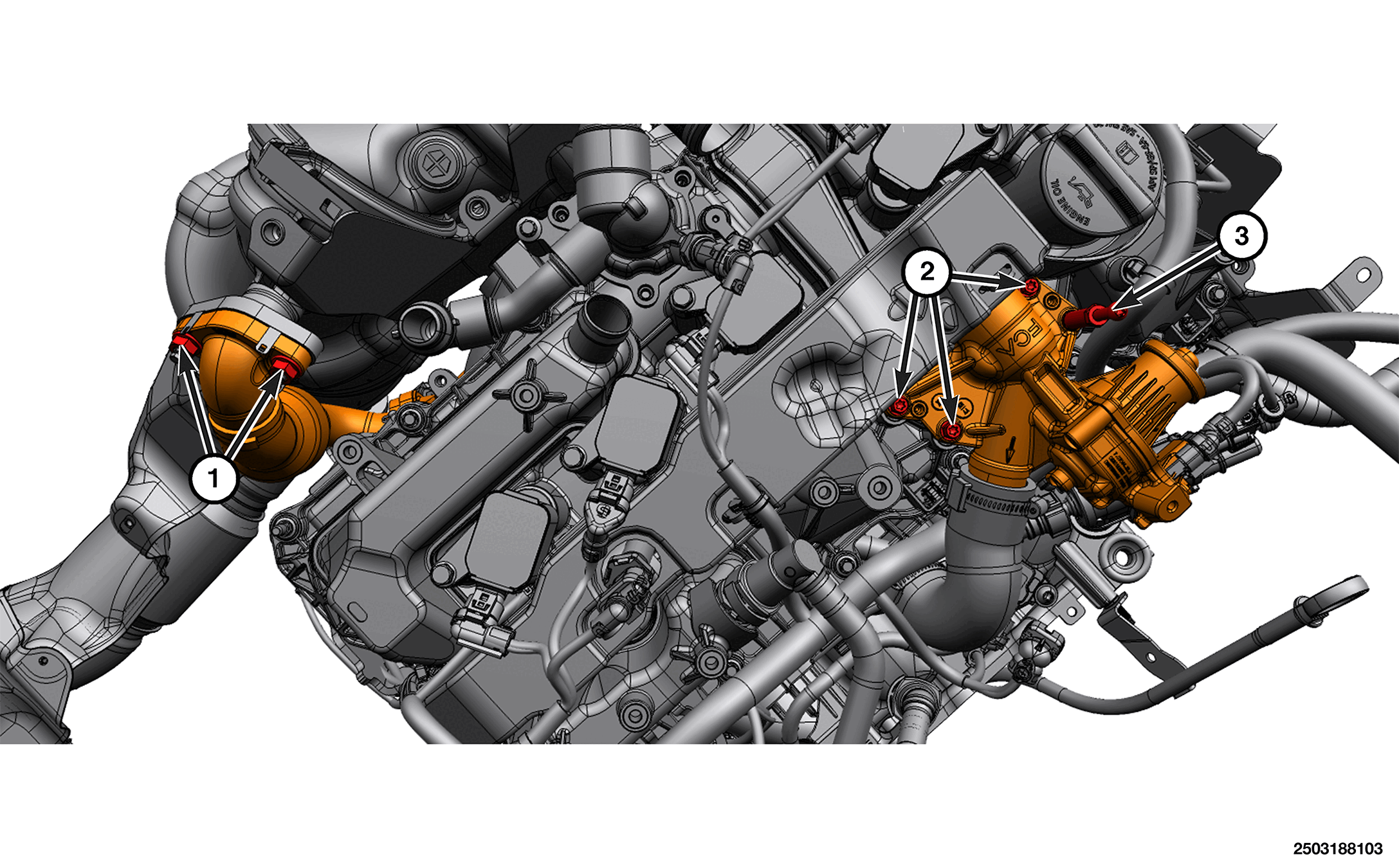

GC0203146

Courtesy of CHRYSLER GROUP, LLC

TORQUE SPECIFICATIONS - EGR SYSTEM (2 OF 2)

1	EGR Pipe To Catalyst	19 N. m (14 Ft. Lbs.)	-
2	EGR Valve To Valve Cover	11 N. m (8 Ft. Lbs.)	-
3	Engine Cover Mounting Stud	11 N. m (8 Ft. Lbs.)	-
