Front Suspension CROSSMEMBER

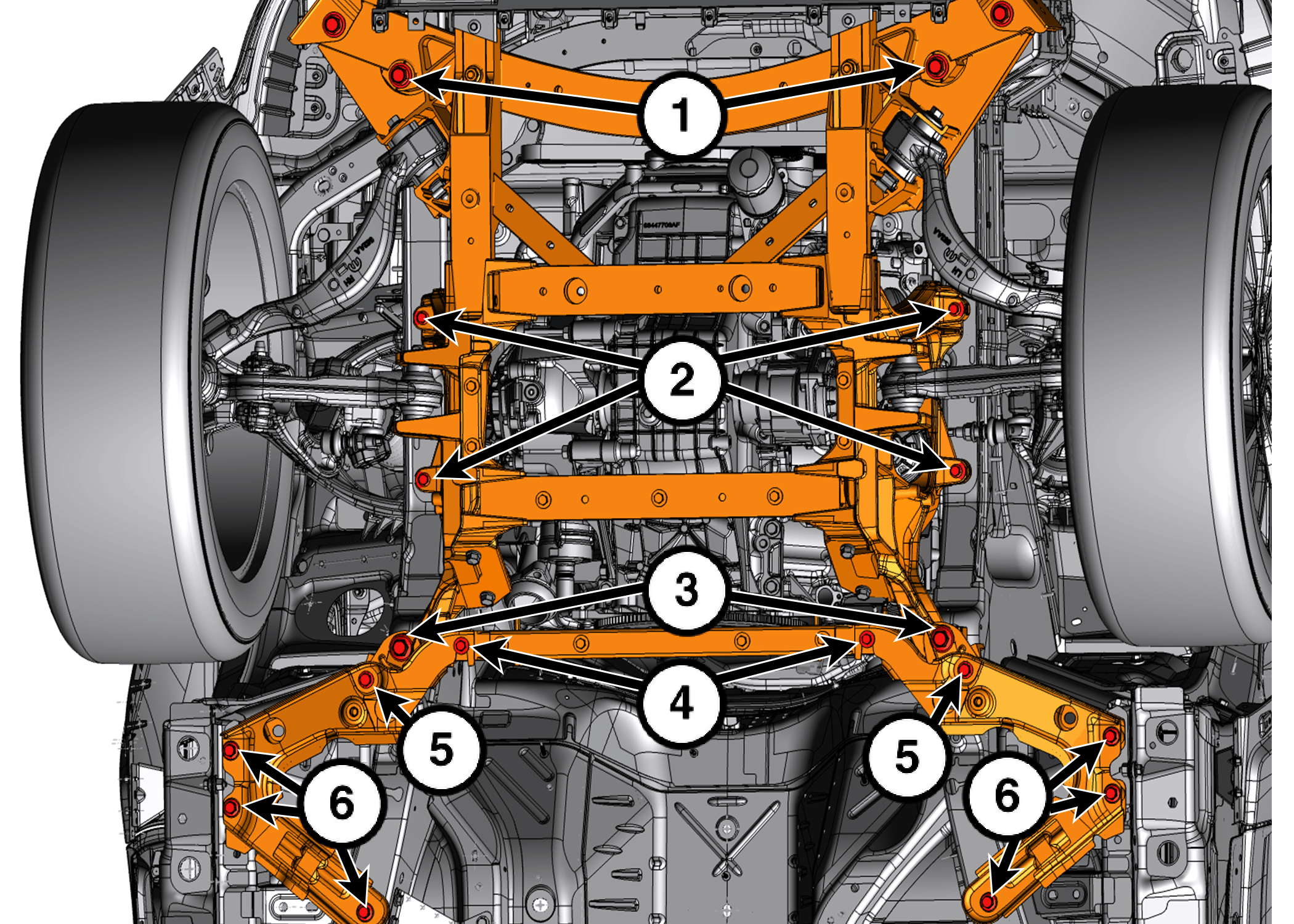

TORQUE SPECIFICATIONS - FRONT SUSPENSION CROSSMEMBER (1 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Front Crossmember to Body Bolts - Front | 95 N.m (70 Ft. Lbs.) | - |
| 2 | Front Crossmember to Body Bolts - Middle | 48 N.m (35 Ft. Lbs.) | - |
| 3 | Front Crossmember to Body Bolts - Rear | 150 N.m (110 Ft. Lbs.) | - |
| 4 | Shear Plate to Torque Box Crossmember | 20 N.m (15 Ft. Lbs.) | |
| 5 | Shear Plate to Cradle | 63 N.m (46 Ft. Lbs.) | - |
| 6 | Shear Plate to Body | 100 N.m (74 Ft. Lbs.) | - |

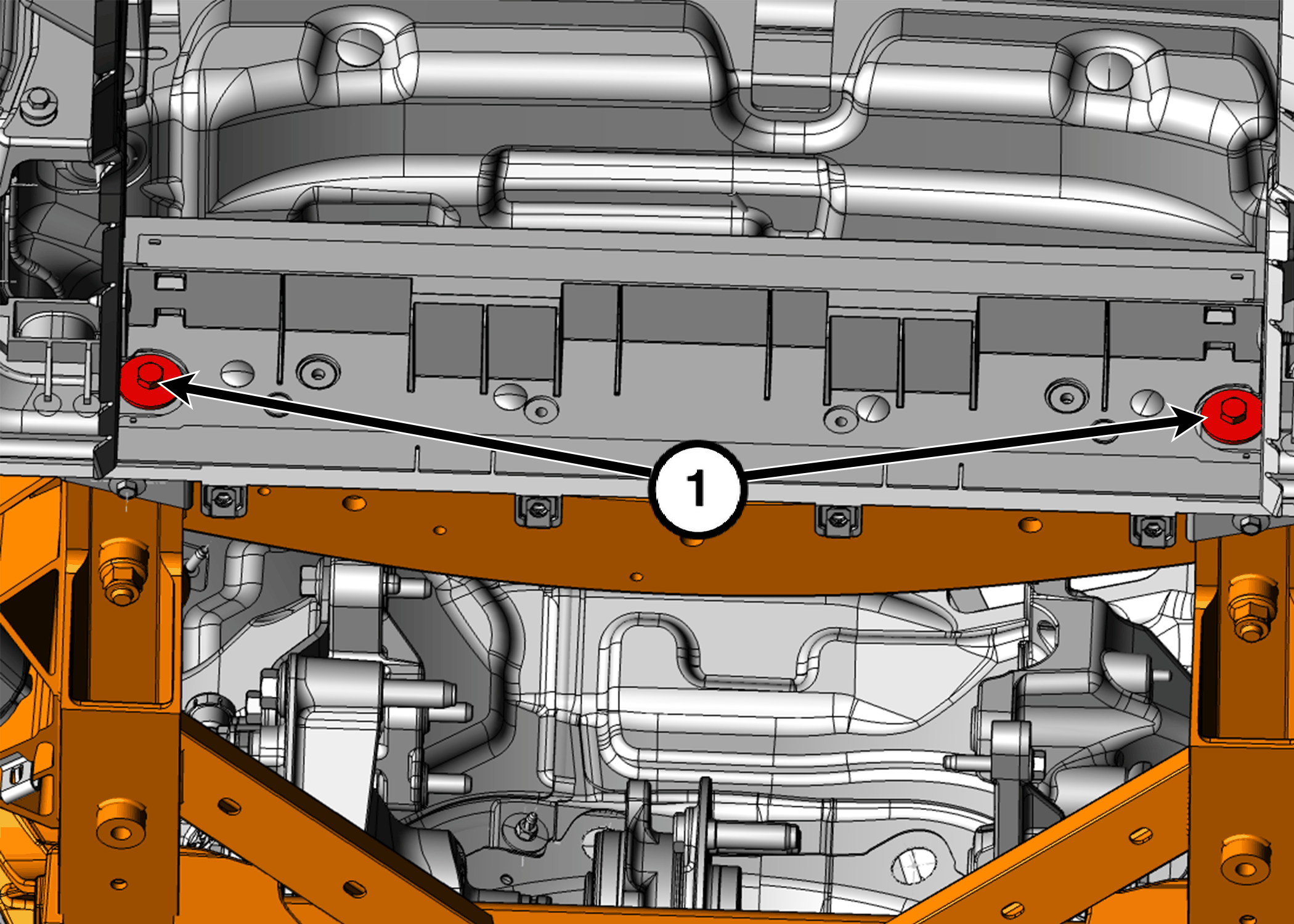

TORQUE SPECIFICATIONS - FRONT SUSPENSION CROSSMEMBER (2 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Front End Module to Cradle | 15 N.m (11 Ft. Lbs.) | - |

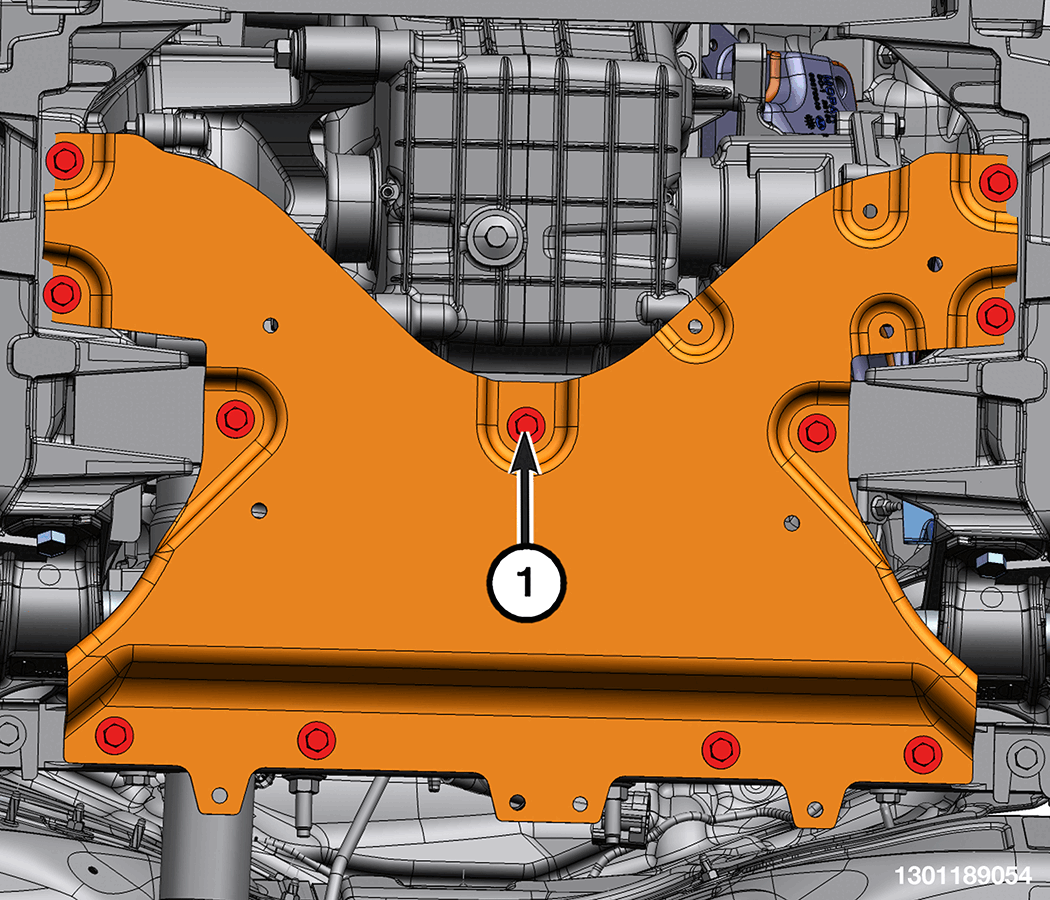

TORQUE SPECIFICATIONS - FRONT SUSPENSION CROSSMEMBER (3 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Stiffening Plate bolts | 20 N.m (15 Ft. Lbs.) | - |
