CROSSMEMBERS - PHEV
 Courtesy of CHRYSLER GROUP, LLC
|

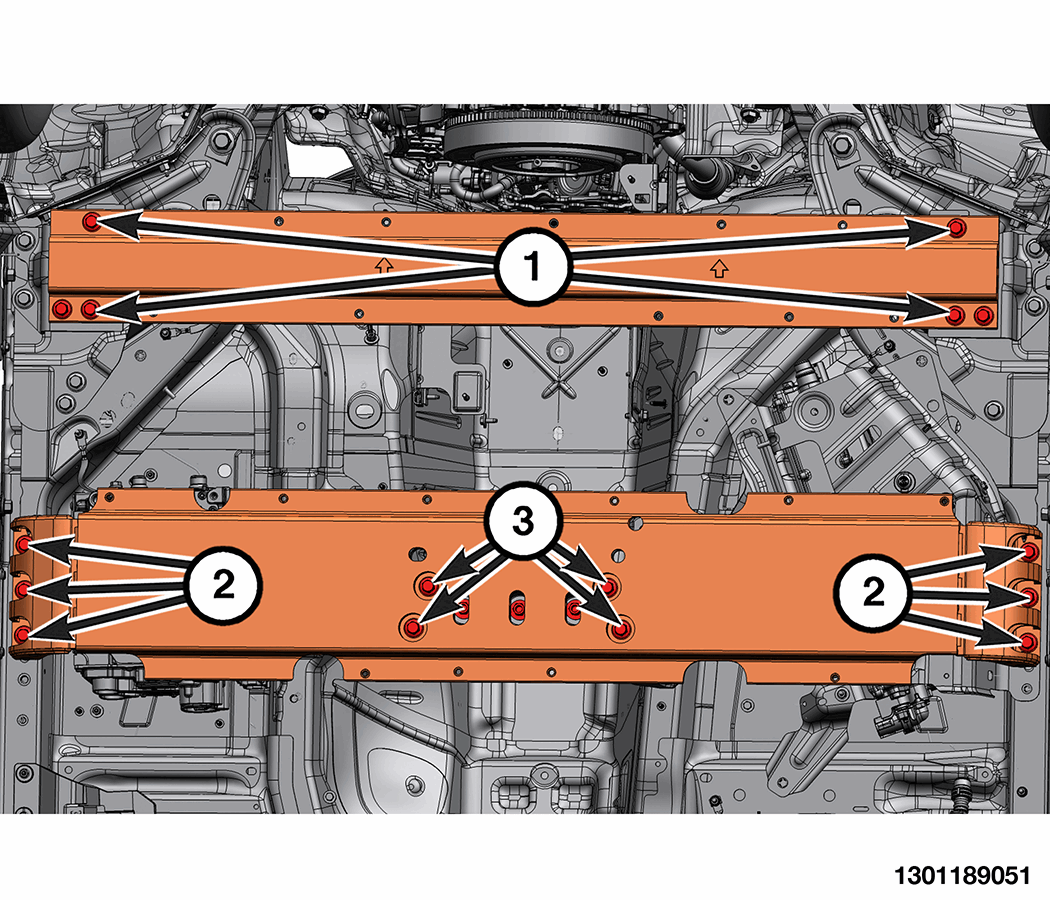

TORQUE SPECIFICATIONS - CROSSMEMBERS - PHEV
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Brace to Body Bolts |
70 N. m (52 Ft. Lbs.) |
- |
| 2 |
Transmission Crossmember to Body Bolts |
110 N. m (73 Ft. Lbs.) |
- |
| 3 |
Transmission Crossmember to Crossmember Bolts |
110 N. m (73 Ft. Lbs.) |
- |
