Front Suspension

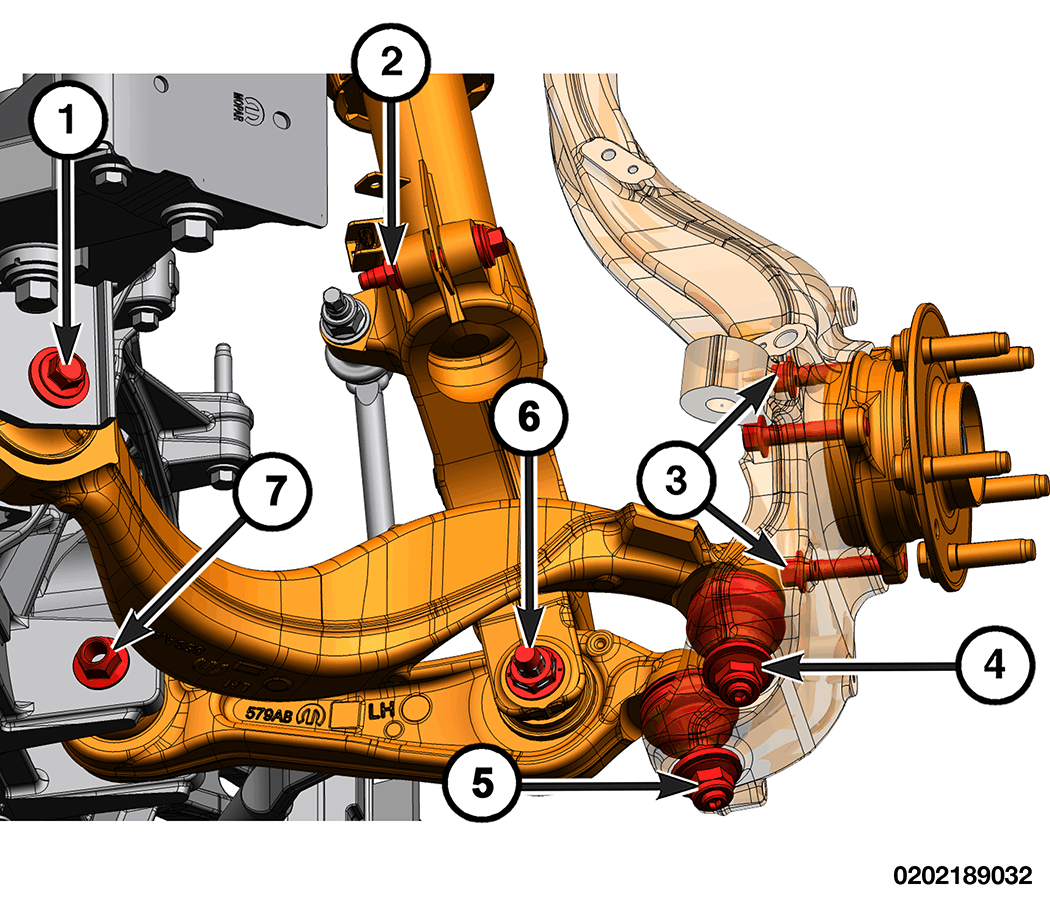

TORQUE SPECIFICATIONS - FRONT SUSPENSION (1 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Tension Link Bolt | 145 N. m (107 Ft. Lbs.) | Fastener must be torqued with the vehicle at normal ride height. |
| 2 | Clevis Pinch Bolt | 100 N. m (74 Ft. Lbs.) | - |
| 3 | Hub and Bearing Bolts | 116 N. m (86 Ft. Lbs.) | - |
| 4 | Tension Link Ball Joint Nut | 70 + 85° N. m (52 + 85° Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 5 | Spring Link Ball Joint Nut | 70 + 85° N. m (52 + 85° Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 6 | Clevis Lower Bolt | 308 N. m (227 Ft. Lbs.) | Fastener must be torqued with the vehicle at normal ride height. |
| 7 | Spring Link Bolt | 180 N. m (133 Ft. Lbs.) | Fastener must be torqued with the vehicle at normal ride height. |
TORQUE SPECIFICATIONS - FRONT SUSPENSION (2 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Upper Control Arm Bolts | 90 N. m (66 Ft. Lbs.) | Fastener must be torqued with the vehicle at normal ride height. |
| 2 | Steering Knuckle Pinch Bolt | 60 N. m (44 Ft. Lbs.) | - |
