Steering Gear

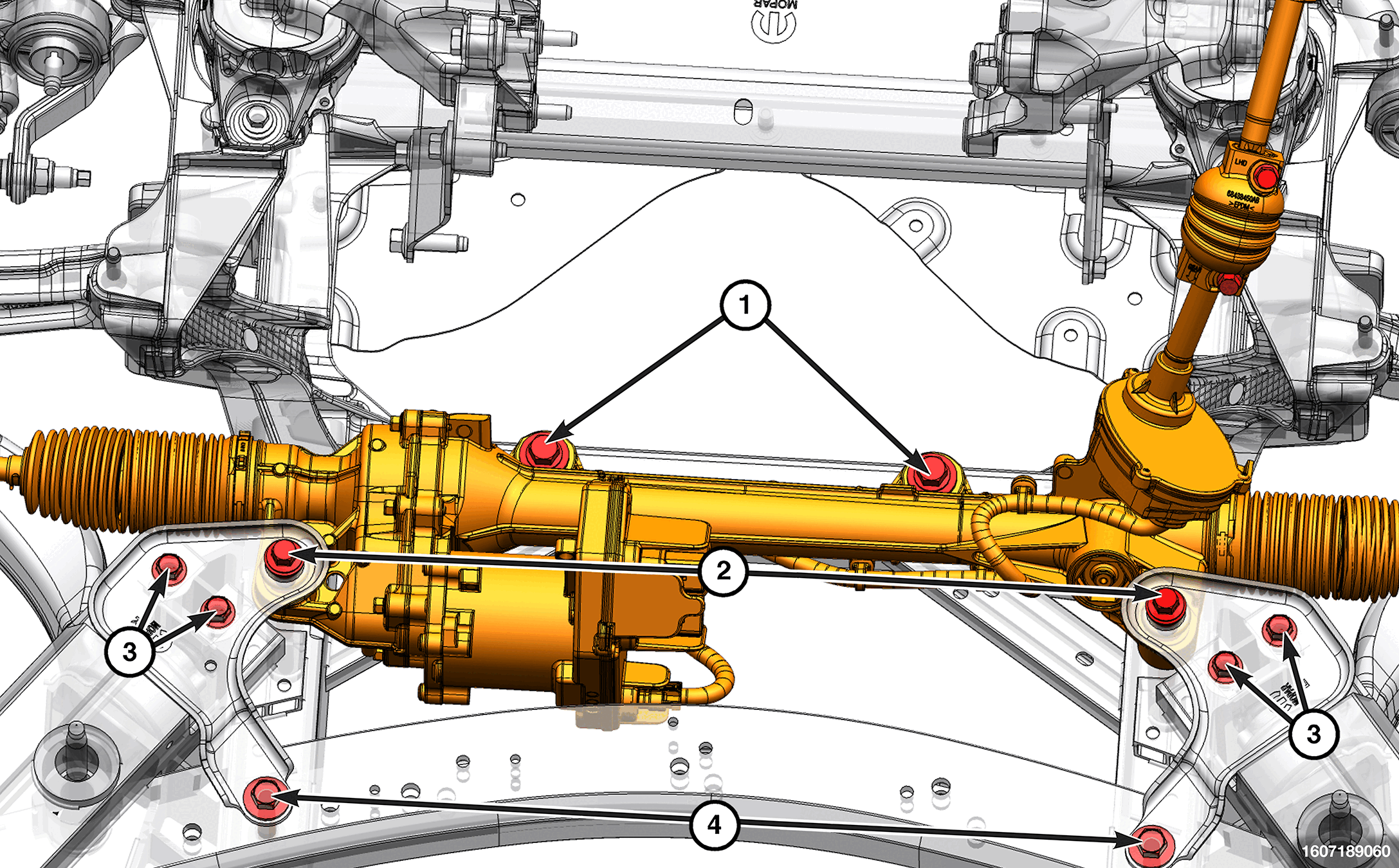

TORQUE SPECIFICATIONS - STEERING GEAR
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Steering Gear Rear Bolts | 113 N. m (83 Ft. Lbs.) | - |
| 2 | Steering Gear Front Bolts | 125 N. m (92 Ft. Lbs.) | - |
| 3 | Steering Gear Bracket Bolts (Short) | 70 N. m (52 Ft. Lbs.) | - |
| 4 | Steering Gear Bracket Bolts (Long) | 100 N. m (74 Ft. Lbs.) | - |
