Standard Procedure: Draining
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
- Position a drain pan under the coolant hoses.

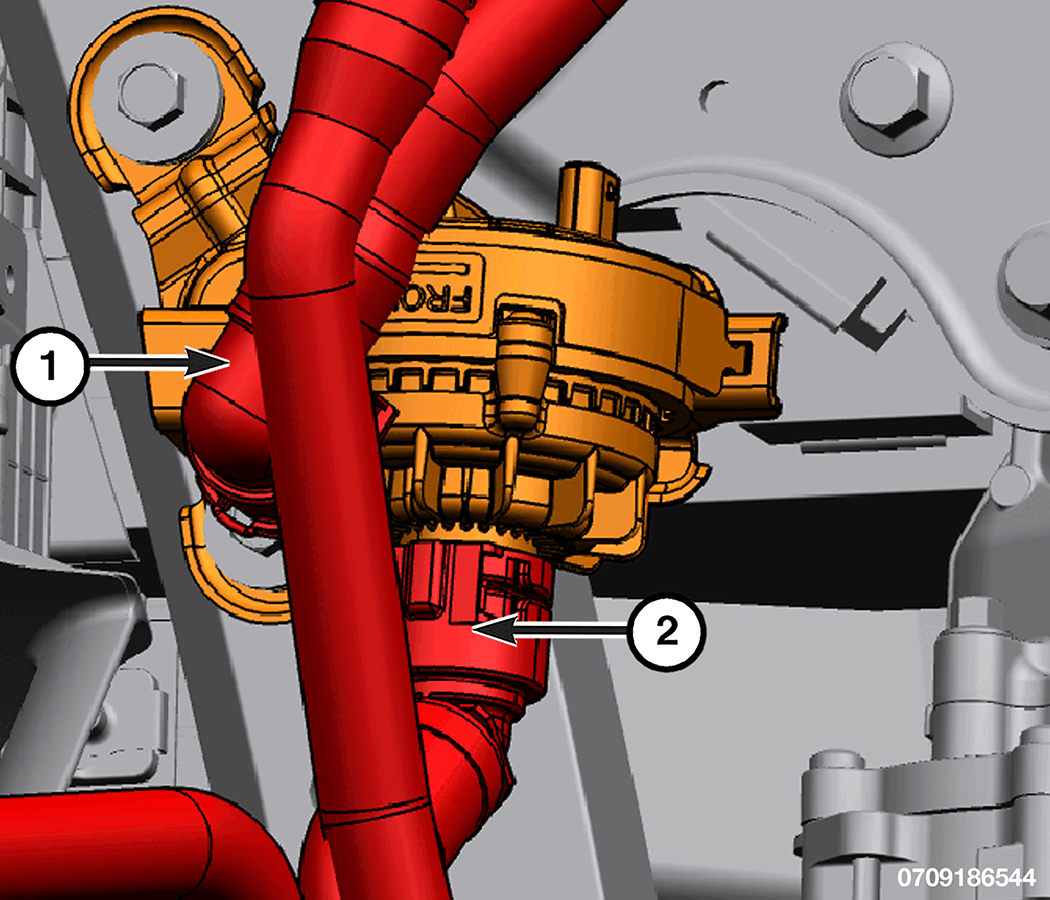

1 - Battery Coolant Pump Inlet Hose 2 - Battery Coolant Pump Outlet Hose - Disconnect the battery coolant pump outlet hose from the battery coolant pump.
