Charging System
 Courtesy of CHRYSLER GROUP, LLC
|

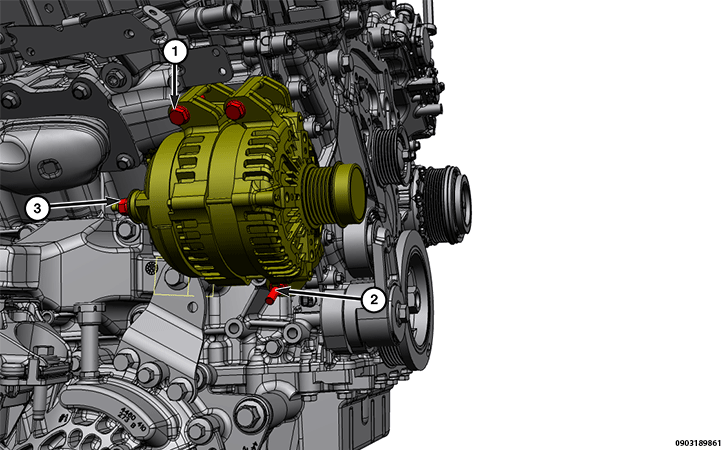

TORQUE SPECIFICATIONS - CHARGING SYSTEM
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Generator to Engine |
55 N. m (41.Ft. Lbs.) |
- |
| 2 |
Generator Bolts |
25 N.m (18 Ft. Lbs.) |
- |
| 3 |
Battery Positive B+ |
18 N. m (13Ft. Lbs.) |
- |
