Dual Battery Switch Module (DBSM)

REMOVAL

Remove the right splash shield
Refer to SHIELD, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

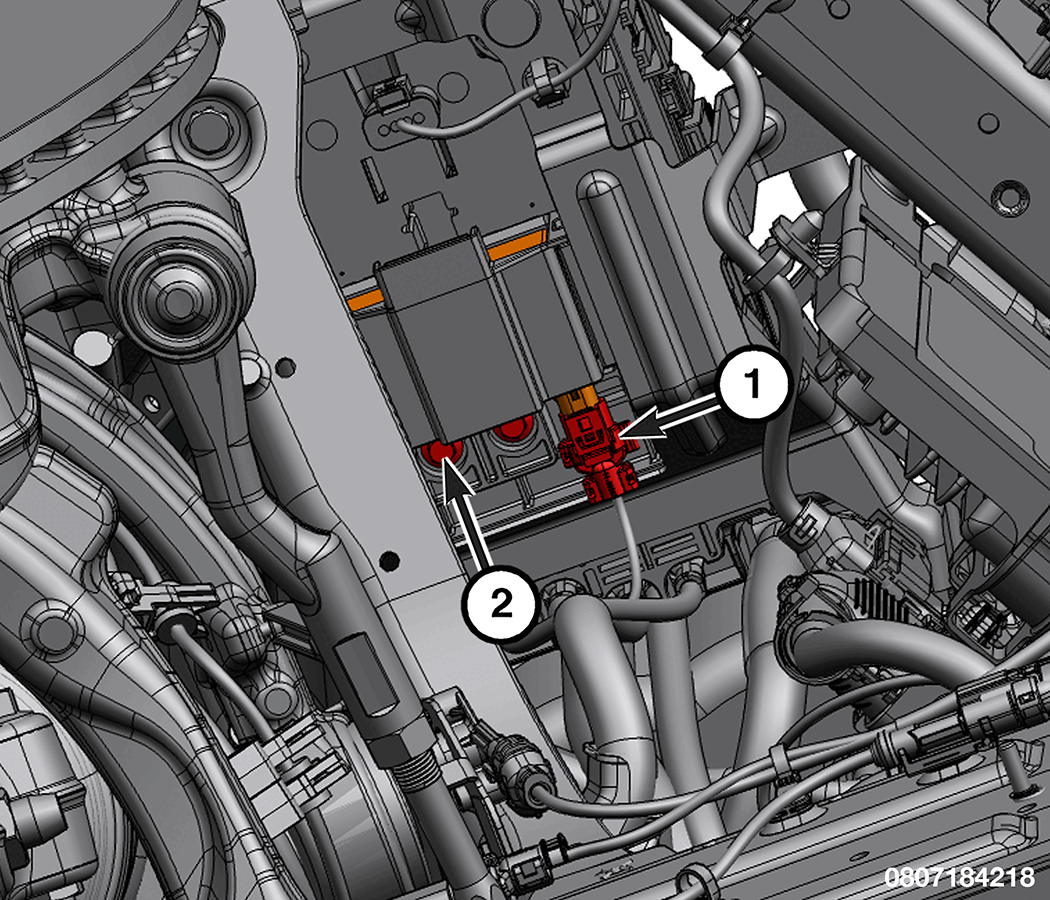

Disconnect the electrical connector (1).
Remove the bolts (2) that secure the Dual Battery Switch Module (DBsM) to the Power Distribution Center (PDC).

Courtesy of CHRYSLER GROUP, LLC

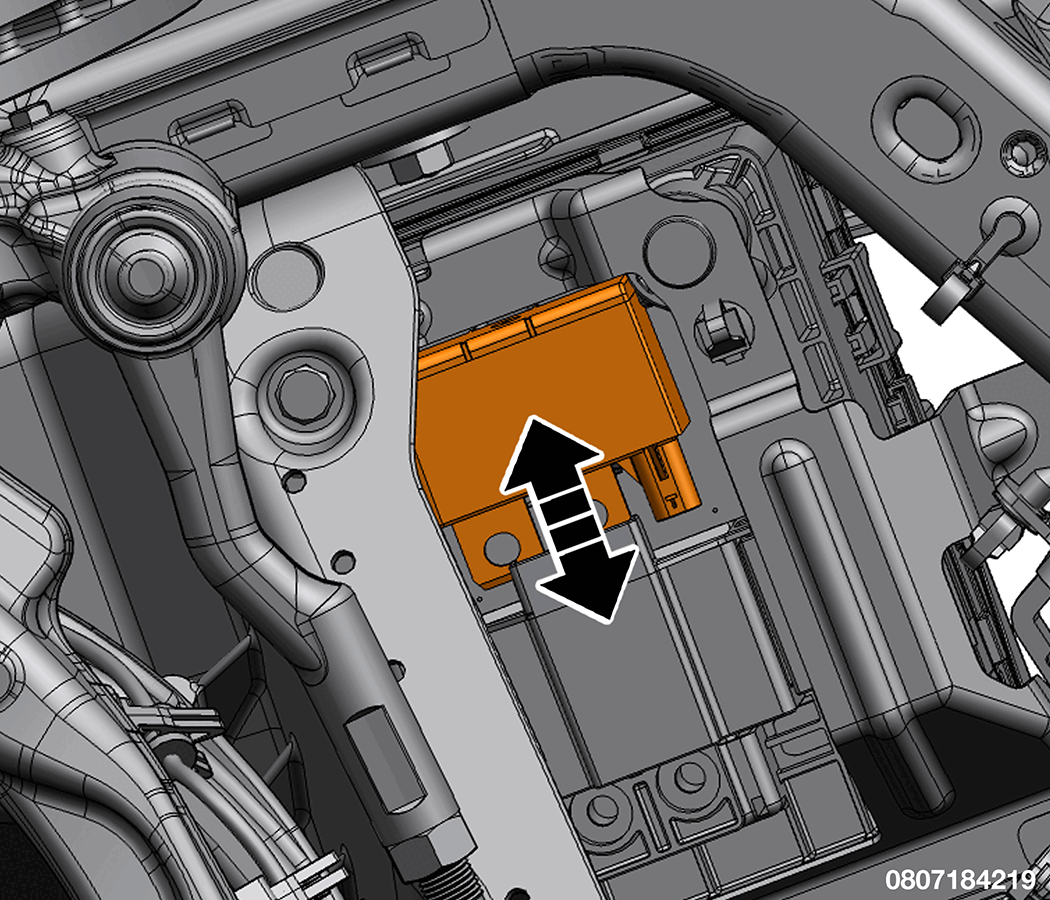

Slide the Module out of the PDC.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.

During installation, torque the following fasteners to specification:

Dual Battery Switch Module (DBSM) to Power Distribution Center (PDC)

9 N. m (80 In. Lbs.)
