PHEV With Two Row Seating

REMOVAL

1. Remove the cargo load floor. Refer to LOAD FLOOR, CARGO, REMOVAL AND INSTALLATION .

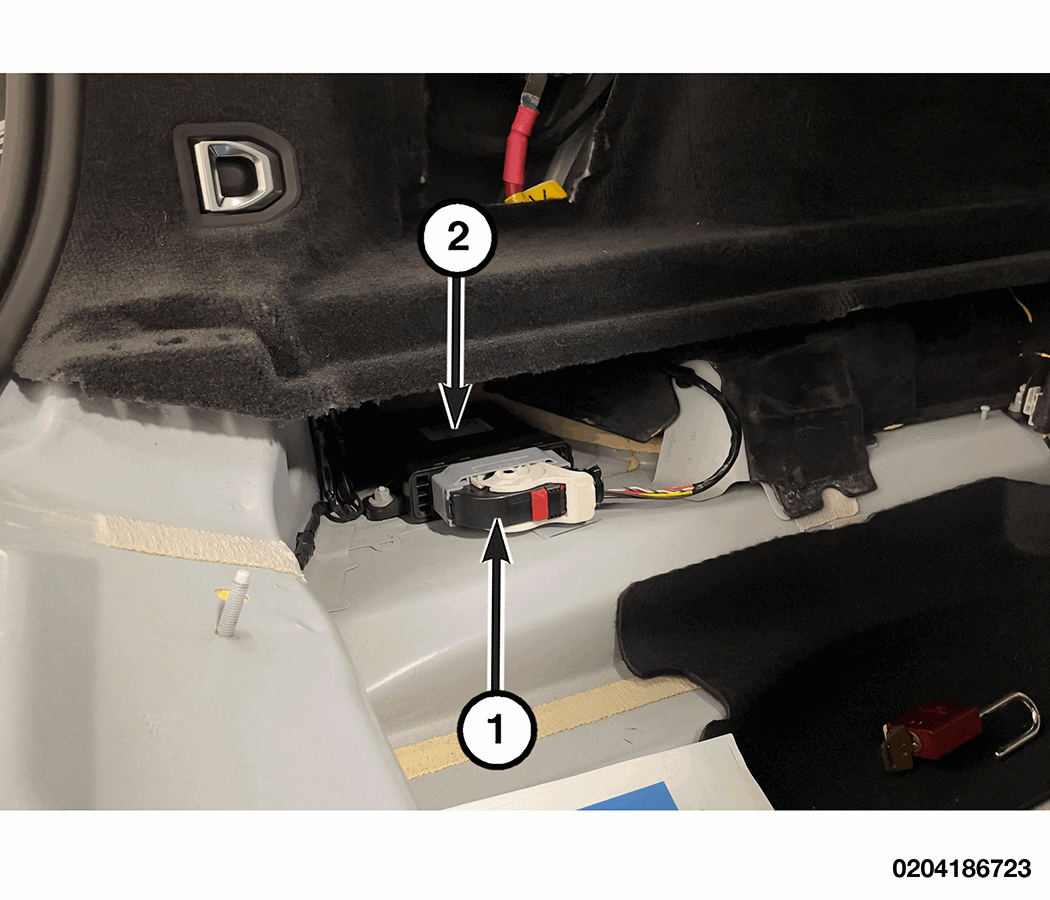

   Courtesy of CHRYSLER GROUP, LLC

   1 - Wire Harness Connector

   2 - Trailer Tow Module (TTM)

2. Disconnect the TTM wire harness connector.

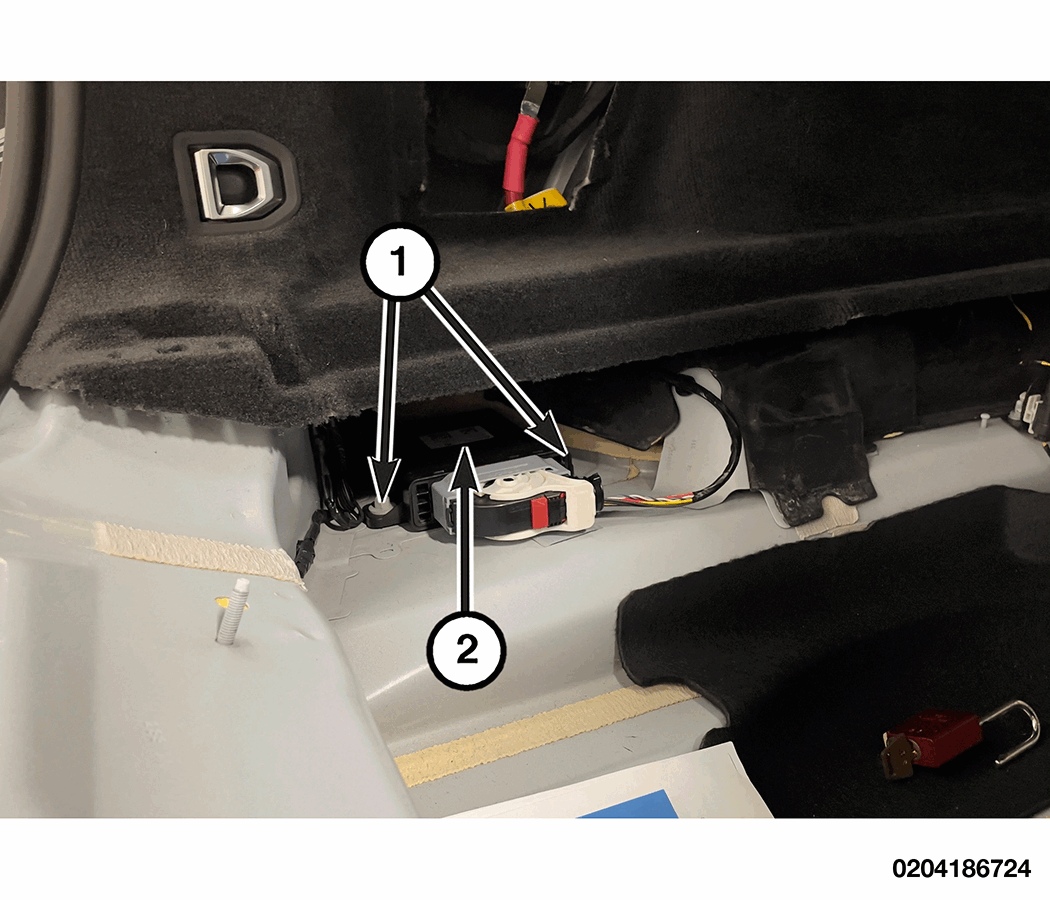

   Courtesy of CHRYSLER GROUP, LLC

   1 - TTM Nuts

   2 - TTM

3. Remove the TTM nuts and remove the TTM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
