Steering Column

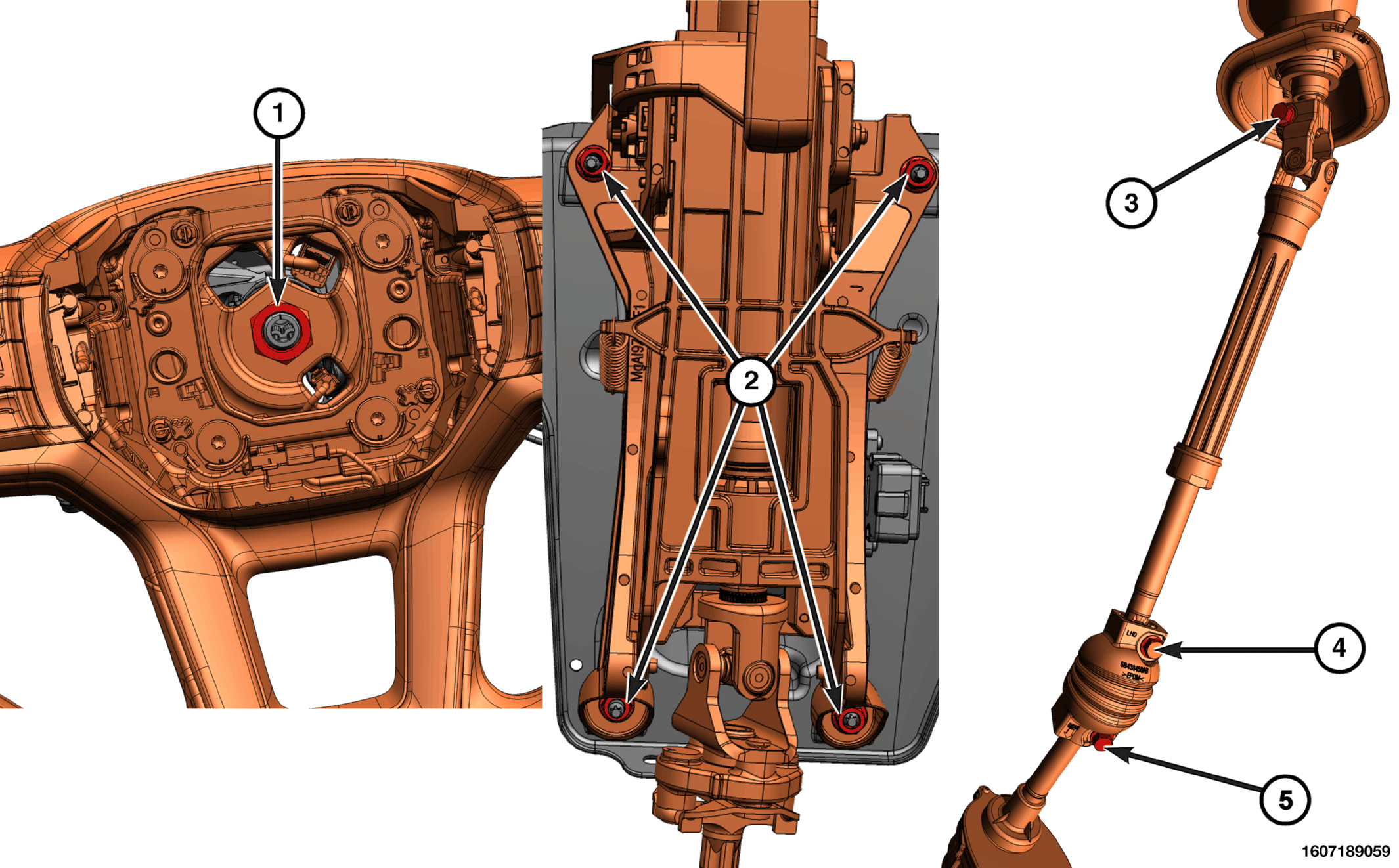

TORQUE SPECIFICATIONS - STEERING COLUMN (1 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Steering Wheel Nut | 39 N. m (29 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 2 | Steering Column Nuts | 22 N. m (16 Ft. Lbs.) | - |
| 3 | Intermediate Shaft Pinch Bolt | 45 N. m (33 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 4 | Upper Steering Column Shaft Coupling Pinch Bolts | 45 N. m (33 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 5 | Lower Steering Column Shaft Coupling Pinch Bolts | 45 N. m (33 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
TORQUE SPECIFICATIONS - STEERING COLUMN (2 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Intermediate Shaft Bearing Nuts | 8 N. m (71 In. Lbs.) | - |
