Torque Specifications: CROSSMEMBERS: CROSSMEMBERS

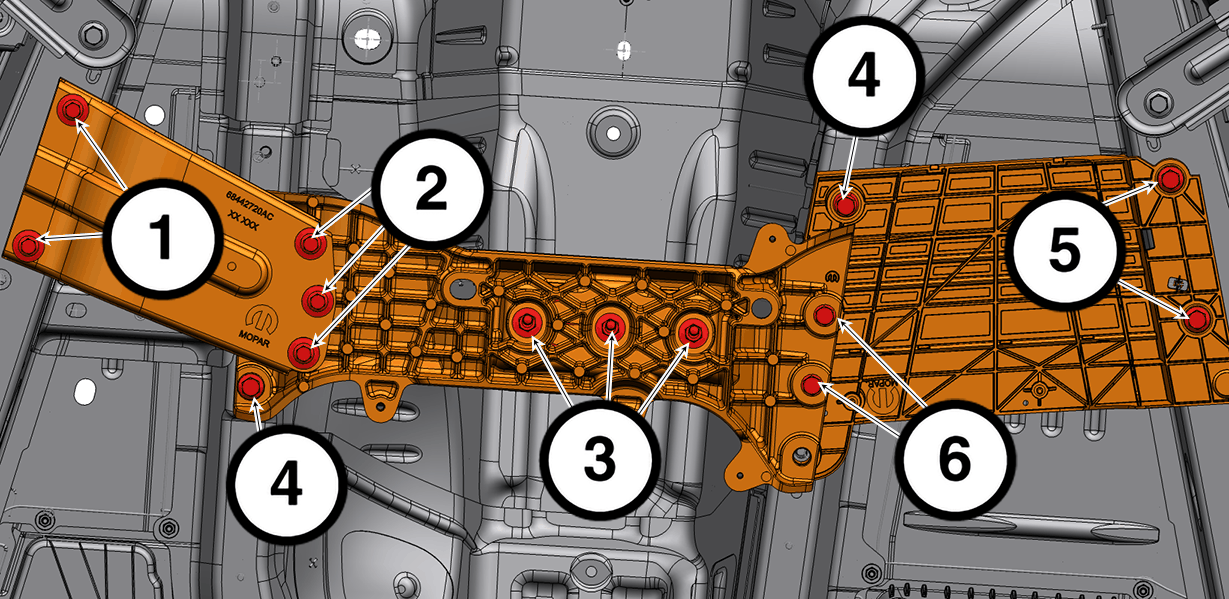

TORQUE SPECIFICATIONS - CROSSMEMBERS (1 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Impact Brace to Body (Right) | 55 N.m (41 Ft. Lbs.) | - |
| 2 | Impact Brace to Crossmember (Right) | 55 N.m (41 Ft. Lbs.) | - |
| 3 | Trans Mount to Crossmember | 62.5 N.m (84 Ft. Lbs.) | - |
| 4 | Crossmember to Body (Right) | 55 N.m (41 Ft. Lbs.) | - |
| 5 | Impact Brace to Body (Left) | 47.5 N.m (35 Ft. Lbs.) | - |
| 6 | Crossmember to Body (left) | 55 N.m (41 Ft. Lbs.) | - |

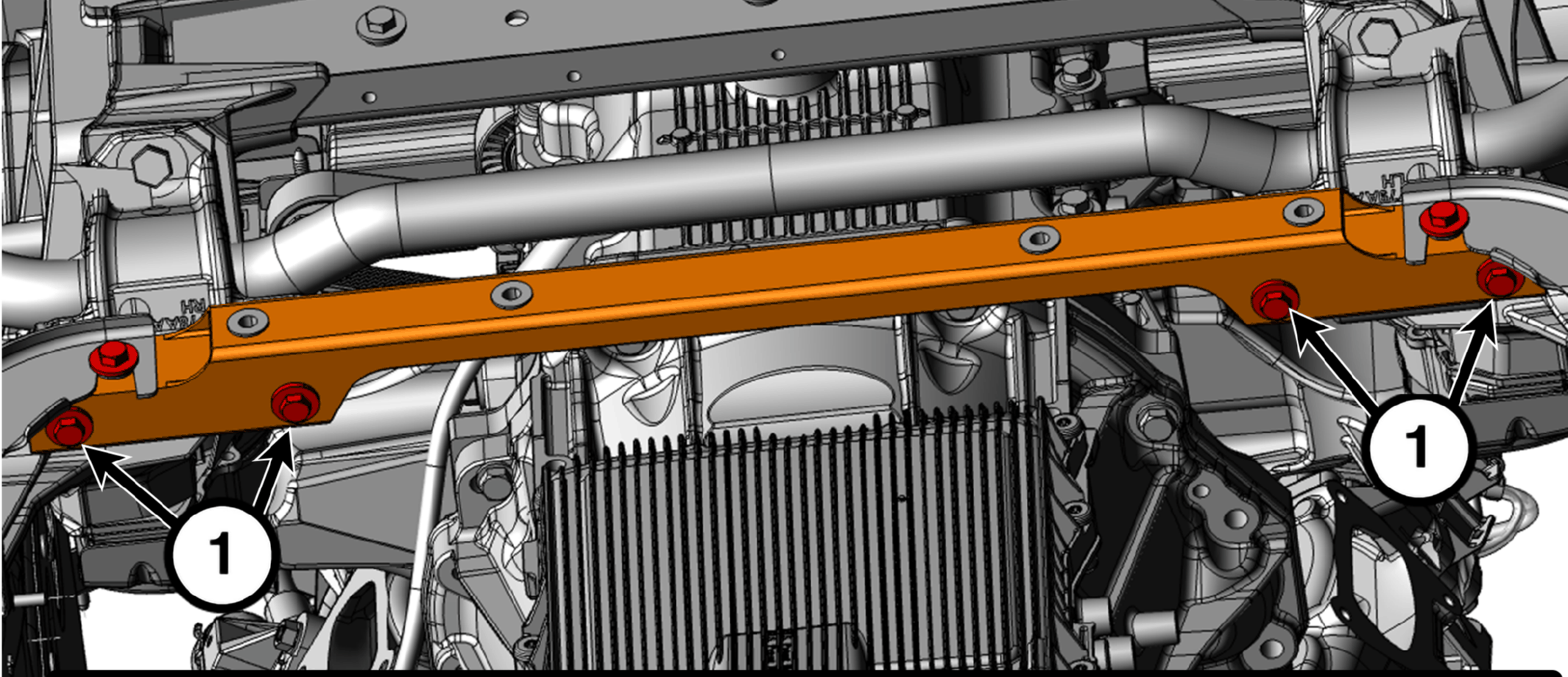

TORQUE SPECIFICATIONS - CROSSMEMBERS (2 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Torquebox Crossmember to Stabilizer Bar bracket | 25 N.m (18 Ft. Lbs.) | - |
