Cooling System
WARNING: This page is about a different variant/trim than selected.

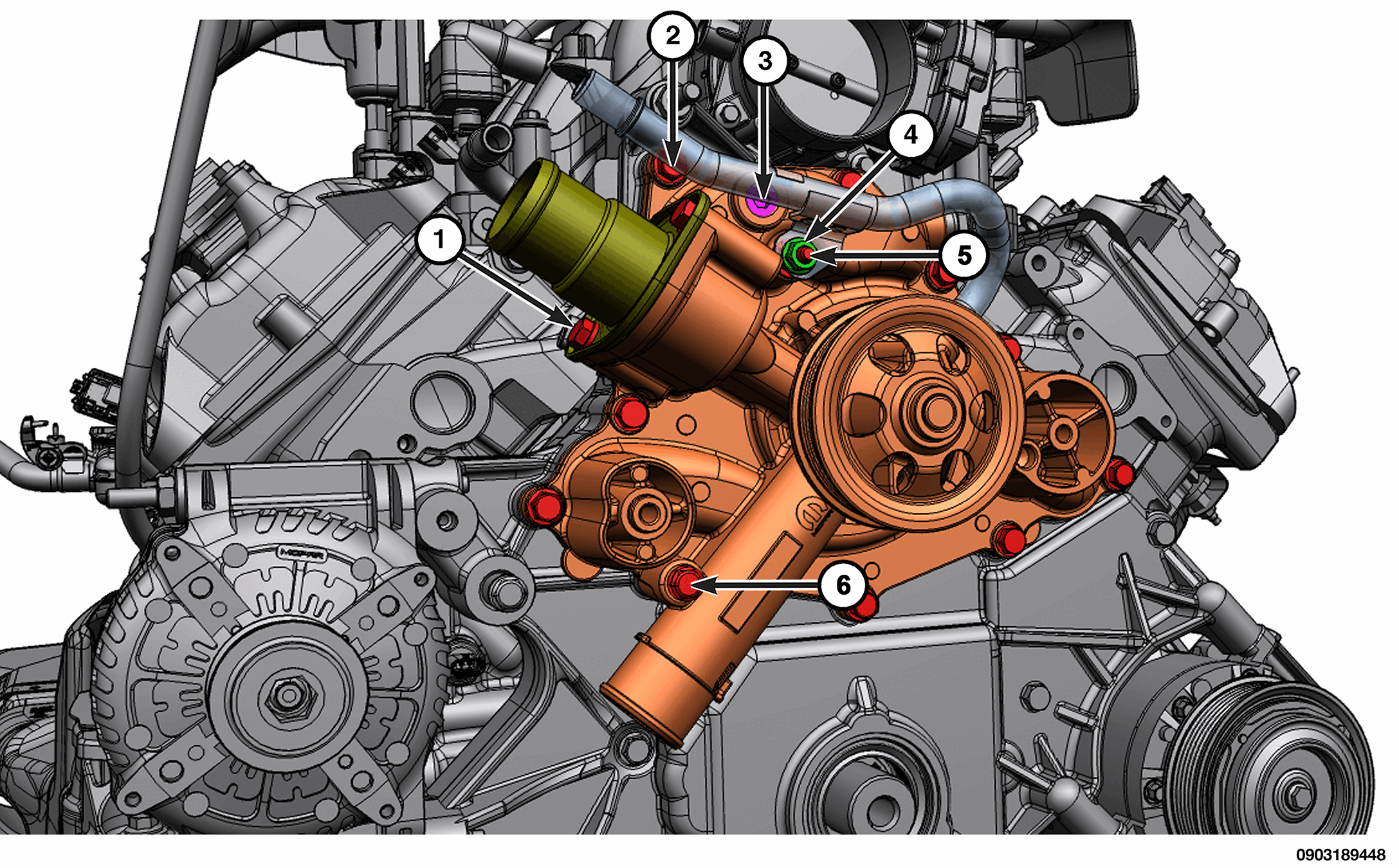

TORQUE SPECIFICATIONS - COOLING SYSTEM
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Thermostat Housing Bolts | 28 N.m (21 Ft. Lbs.) | - |
| 2 | Water Pump Bolts Short | 28 N.m (21 Ft. Lbs.) | - |
| 3 | Bleed Plug | 6 N.m (53 In. Lbs.) | - |
| 4 | Coolant Tube Nut | 25 N.m (18 Ft. Lbs.) | - |
| 5 | Coolant Tube Stud Bolt | 28 N.m (21 Ft. Lbs.) | - |
| 6 | Water Pump Bolts - Long | 28 N.m (21 Ft. Lbs.) | - |
| - | Electric Cooling Fan Bolts | 7 N.m (62 In. Lbs.) | - |
| - | Pressurized Coolant Bottle Nuts | 7 N.m (62 In. Lbs.) | - |
| - | Radiator to Crossmember Bolts | 12 N.m (9 Ft. Lbs.) | - |
