Engine Sensors

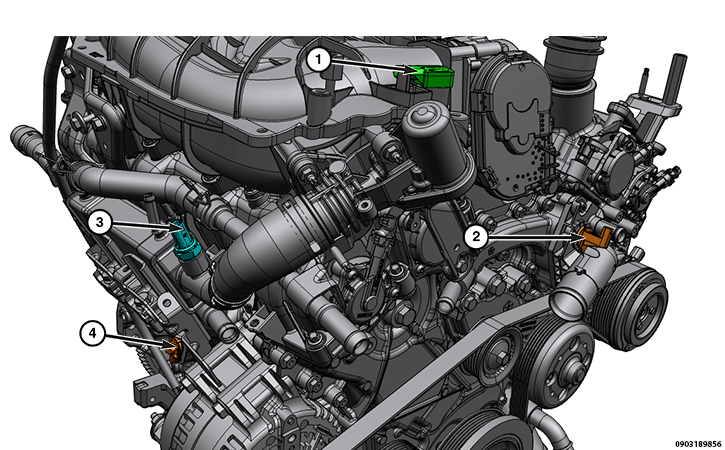

TORQUE SPECIFICATIONS - ENGINE SENSORS (1 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Map Sensor | ||
| 2 | Coolant Temperature Sensor | ||
| 3 | EGR Temperature Sensor | 37 N. m (27 Ft. Lbs.) | - |
| 4 | Crankshaft Position (CKP) Sensor Bolt | 10 N.m (89 In. Lbs.) | - |

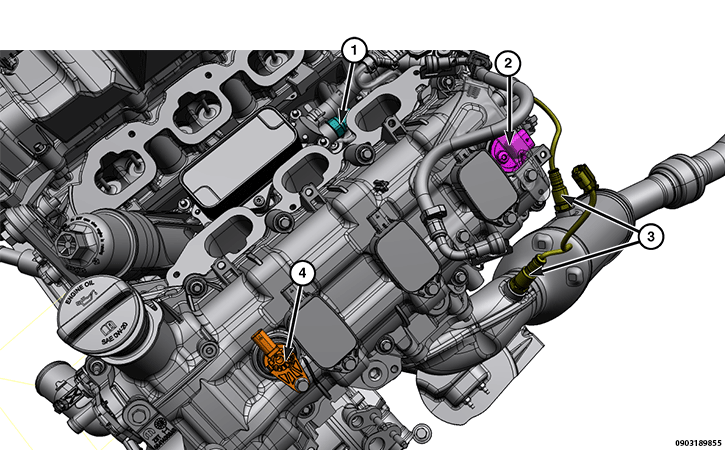

TORQUE SPECIFICATIONS - ENGINE SENSORS (2 OF 2)
| 1 | Engine Oil Pressure (EOP) Sensor | 20 N.m (15 Ft. Lbs.) | - |
| 2 | Camshaft Position (CMP) Sensor to Cylinder Head | 9 N. m (80 In. Lbs.) | - |
| 3 | Oxygen (O2) Sensor | 50 N.m (37 Ft. Lbs.) | - |
| 4 | Oil Control Valve | 8 N. m (71 In. Lbs.) | - |
| - | Oil Temperature Sensor to Cylinder Head | 11 N.m (8 Ft. Lbs.) | - |
