Cylinder Head

TORQUE SPECIFICATIONS - CYLINDER HEAD

DESCRIPTION SPECIFICATION COMMENTS

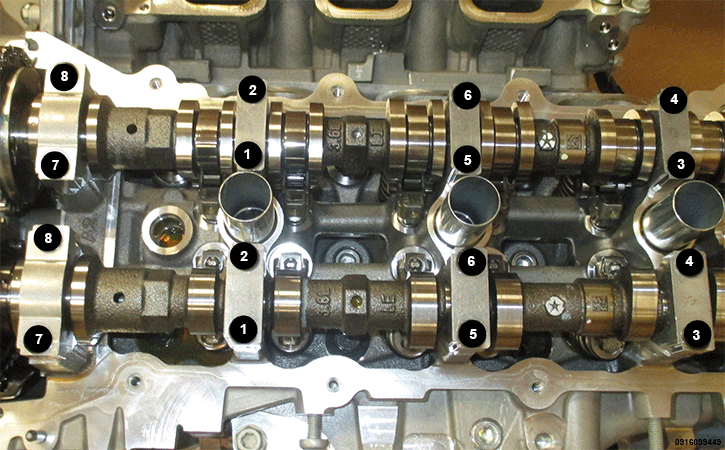

Camshaft Bearing Cap Bolts 10 N.m (89 In. Lbs.)  Tightening Sequence - Left
GC0173674GC0173793Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC

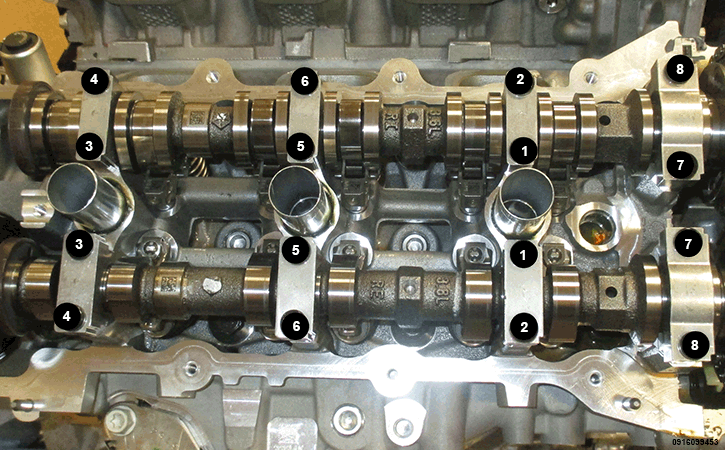

Tightening Sequence - Right
GC0173674GC0173793Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
Cylinder Head Oil Galley Plug 18 N.m (13 Ft. Lbs.)  -
Cylinder Head Oil Restrictor M8 Plug 15 N.m (11 Ft. Lbs.)  -
Cylinder Head Bolts Torque Procedure
For engine builds using a new block follow steps 1-9. For engine re-builds (reuse block) follow step 6-9.
  1. 30 N. m (22 ft. lbs.)
  2. 45 N. m (33 ft. lbs.)
  3. Re-tighten all to 45 N. m (33 ft. lbs.)
  4. All + 125° Turn. Do not use a torque wrench for this step.
  5. Loosen all fasteners in reverse of sequence shown
  6. All to 30 N. m (22 ft. lbs.)
  7. All to 45 N. m (33 ft. lbs.)
  8. Re-tighten all to 45 N. m (33 ft. lbs.)
  9. All + 130° Turn. Do not use a torque wrench for this step.

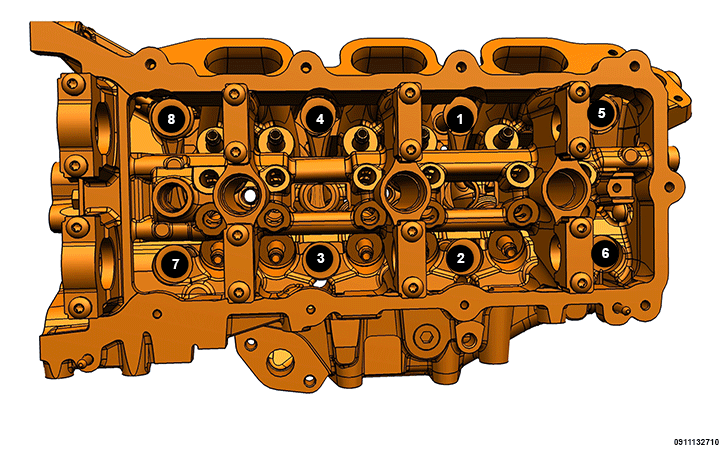

 Tightening Sequence - Left
GC0183280GC0182103Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC

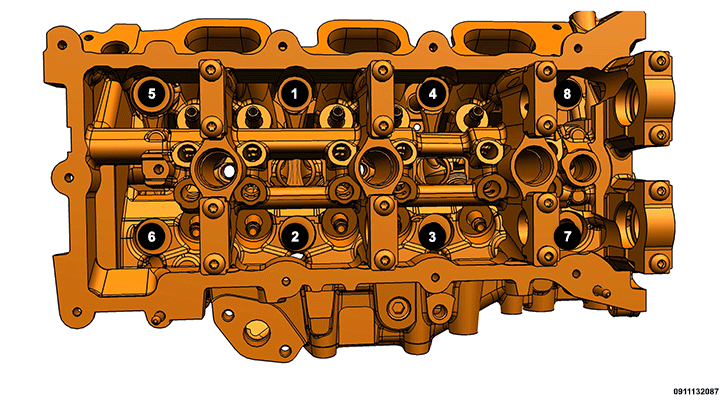

Tightening Sequence - Right
GC0183280GC0182103Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC

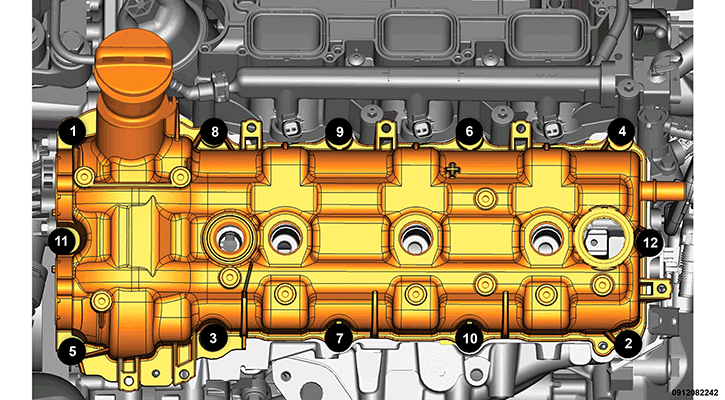

Cylinder Head Cover M6 Bolts 12 N.m (9 Ft. Lbs.)  Tightening Sequence - Left
GC0173707GC0173543Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC

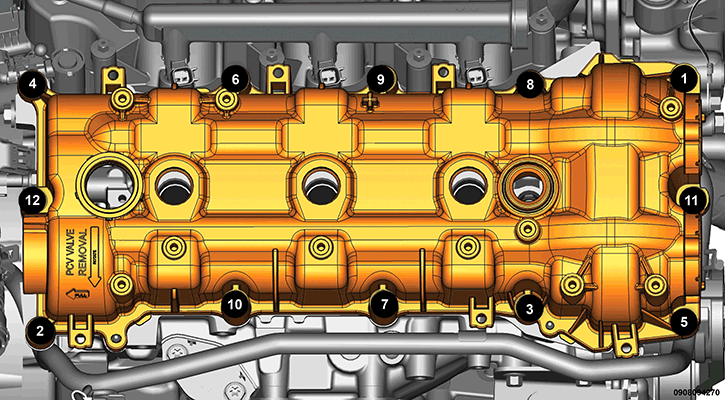

Tightening Sequence - Right
GC0173707GC0173543Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
Heater Core Supply Tube to Cylinder Head M8 Bolt 12 N.m (9 Ft. Lbs.)  -
Wire Harness Retainer Bracket to LH Cylinder Head Bolts 10 N.m (89 In. Lbs.)  -
