Description - NOX Sensor: Notes
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

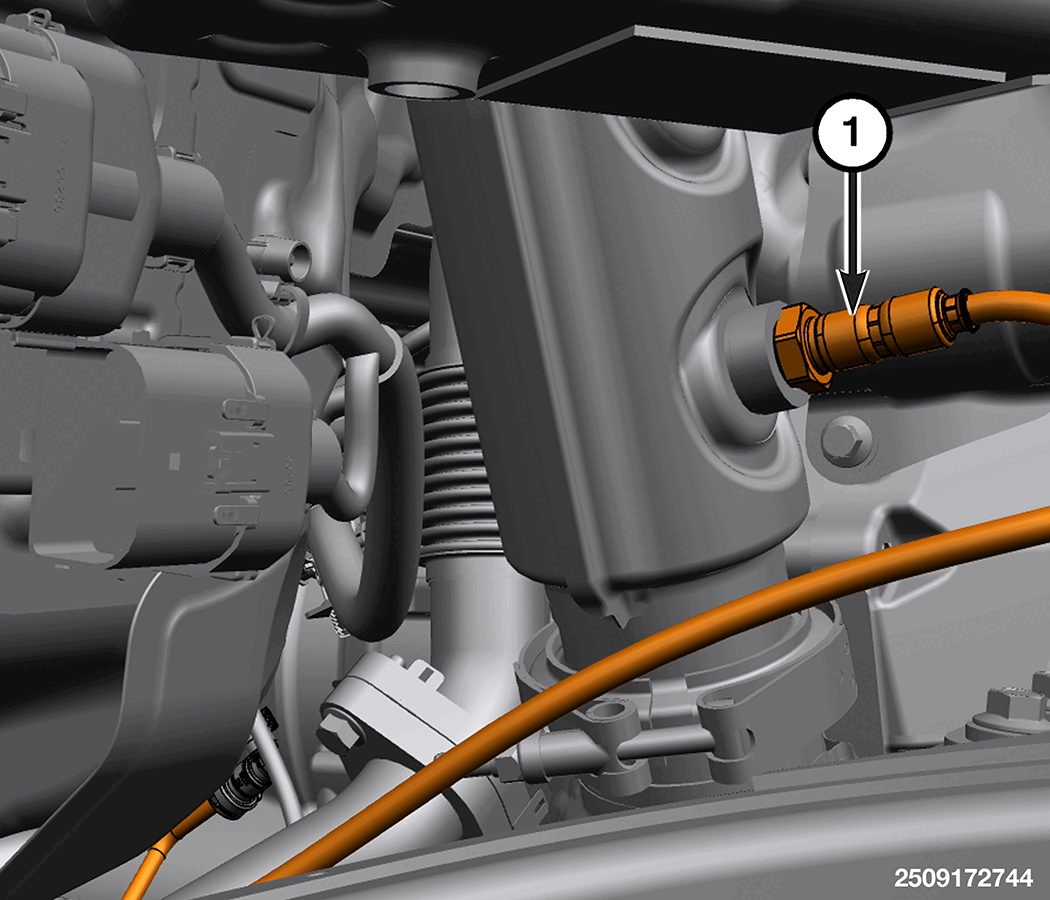

- The NOx sensor 1/1 is mounted at the elbow of the Diesel Oxidation Catalyst/Diesel Particulate Filter and measures incoming NOx gases.
 Courtesy of CHRYSLER GROUP, LLC
|

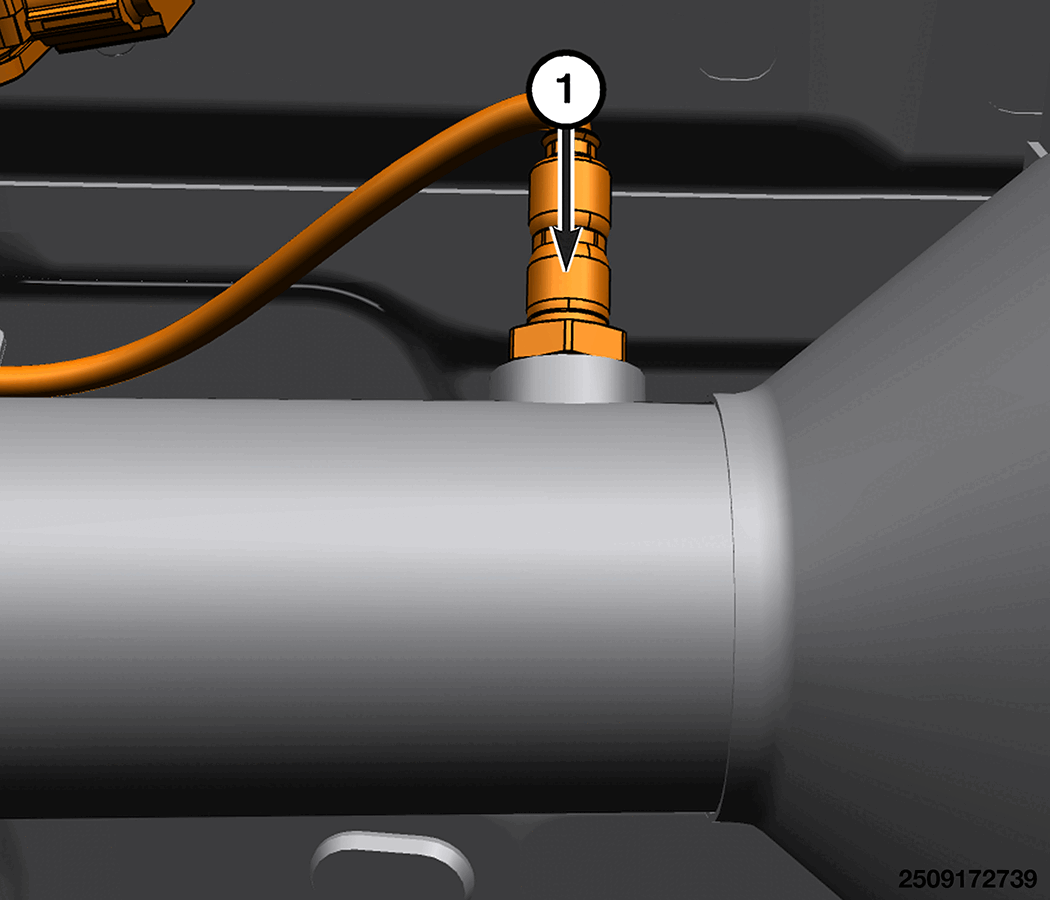

- The Post-NOx sensor 1/2 is mounted at the rear outlet of the Selective Catalytic Reduction (SCR) Catalyst and measures outgoing NOx gases.
