Box, MOPAR Connect TELEMATIC - LHD: Installation
WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
- Make a note or take a photo of the data on the label (1) at the rear of the module. This data is necessary for the test procedure at the end of the installation.
- Apply a strip of biadhesive velcro (1) to the back of the T-box module.
- Apply the Coroplast covering tape to the parts of the T-box module in contact with the vehicle to prevent vibration noise when it is mounted on the vehicle.

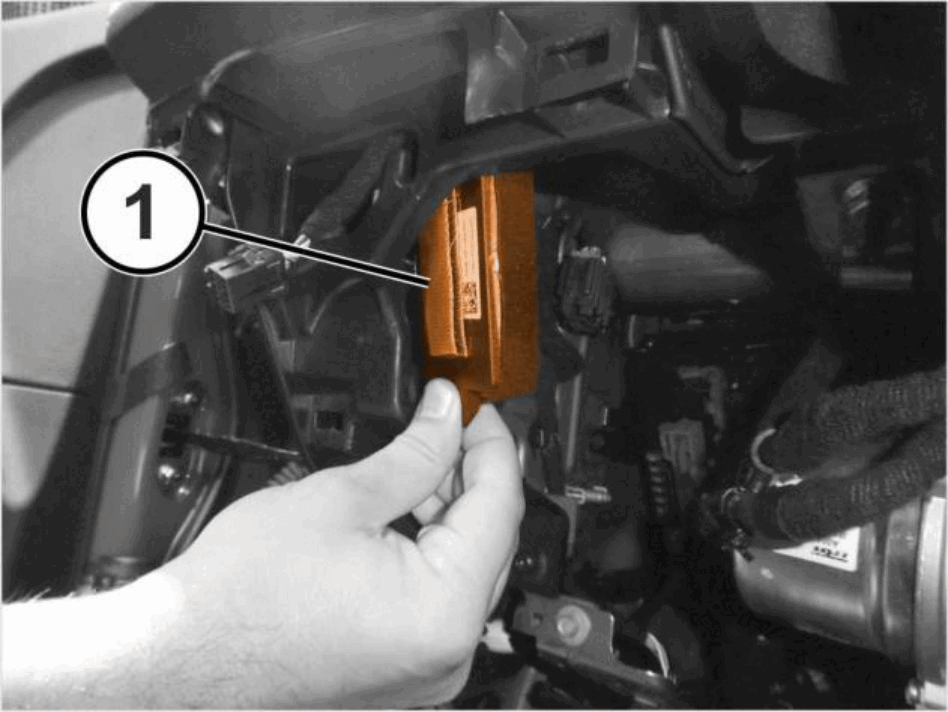

- Insert the T-box (1), already connected to its harness, inside the dashboard, while keeping it vertical.

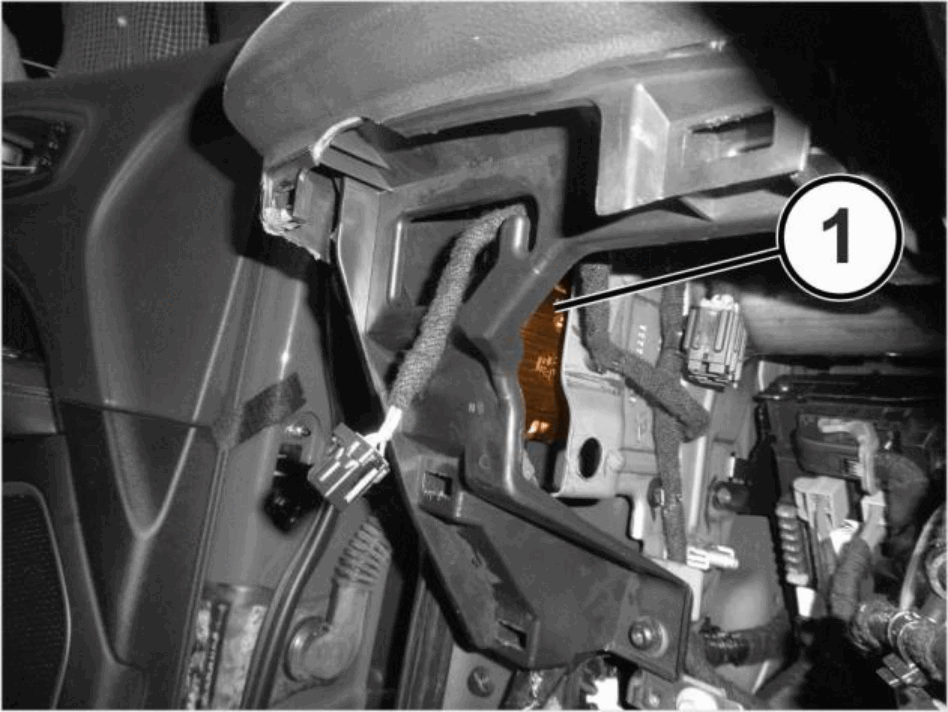

- Position the T-box (1) on the internal dashboard bracket and turn it to the horizontal position with the wiring facing downwards.

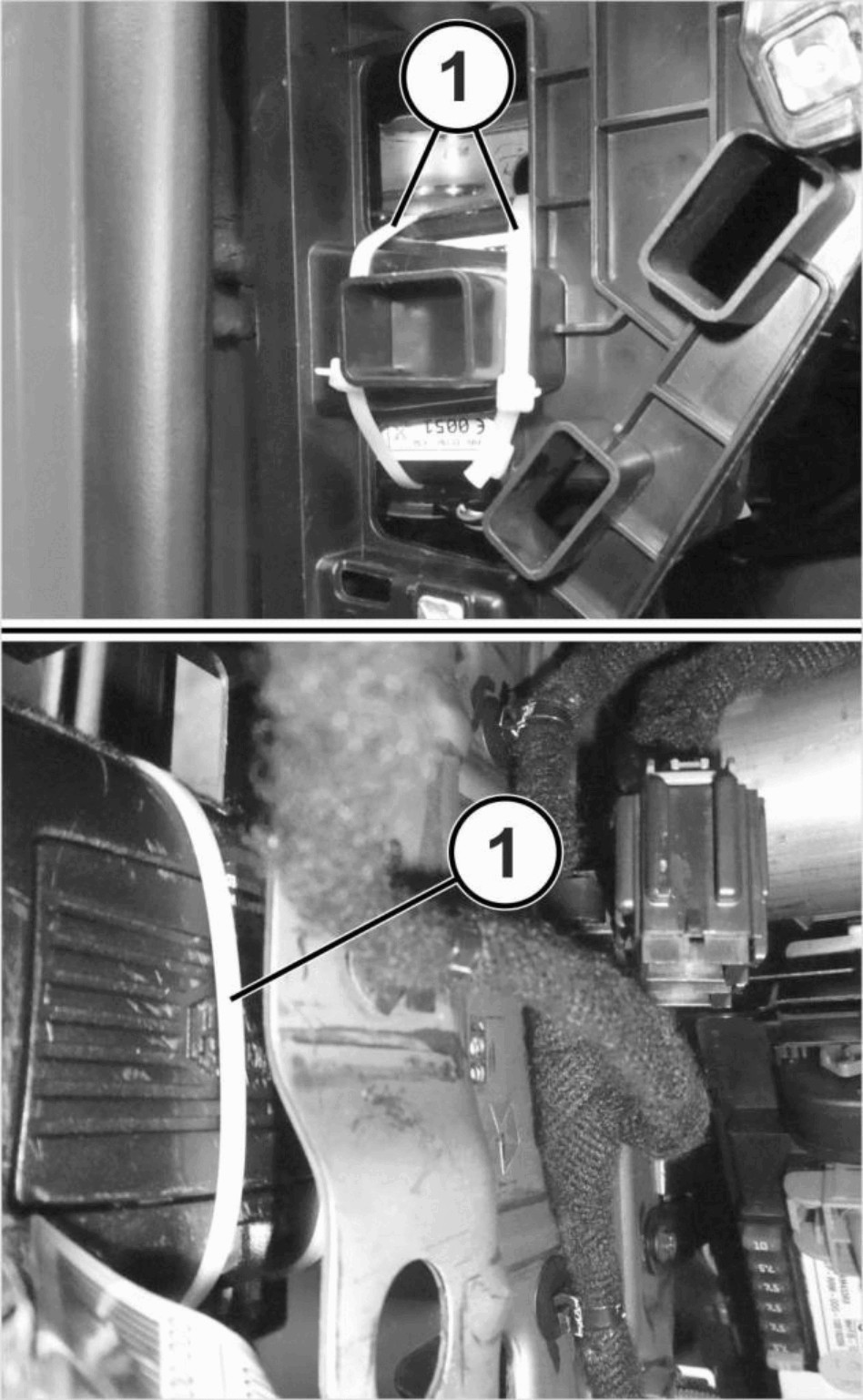

- Fix the T-box in position using cable ties (1).NOTE:
Take care to position and secure the bands so that they DO NOT pass over the innermost metal bracket.
- Install the lower B pillar trim. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION or PANEL, B-PILLAR TRIM, UPPER, REMOVAL AND INSTALLATION .
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- On completion of installation of the T-box module, connect the diagnosis instrument to the car's EOBD socket, locate the BCM module and check for errors.
