Home >> Jeep >> 2022 >> Compass Red >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Delivery, Gas >> Receptacle, Fuel Fill >> Removal And Installation >> Removal

Removal And Installation: Removal

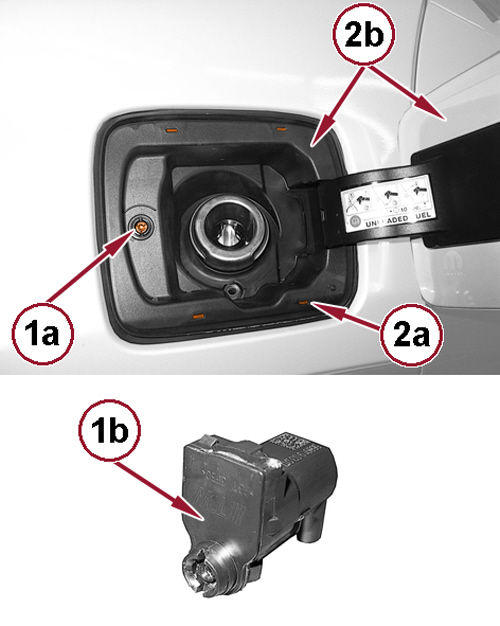

GC0165120Courtesy of CHRYSLER GROUP, LLC
  1. Rotate the screw (1a) 90° and remove the device for retaining the door (1b).
  2. Detach the clips (2a) and remove the fuel fill door (2b).

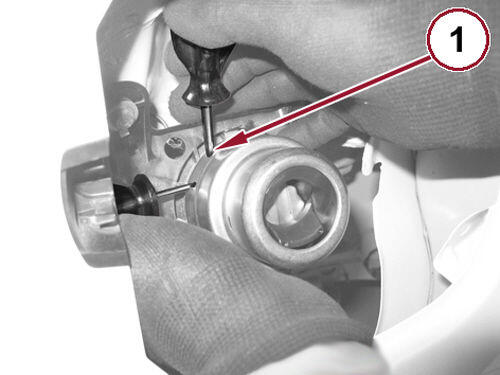

    GC0164707Courtesy of CHRYSLER GROUP, LLC
  3. Working with suitable screwdriver, lift the four retaining clips of the capless fuel fill receptacle (1).
  4. With the tool unseat capless fuel fill receptacle.
  5. Remove the capless fuel fill receptacle to replace.
