Rear Power Outlet: Removal
- Disconnect and isolate the negative battery cable.

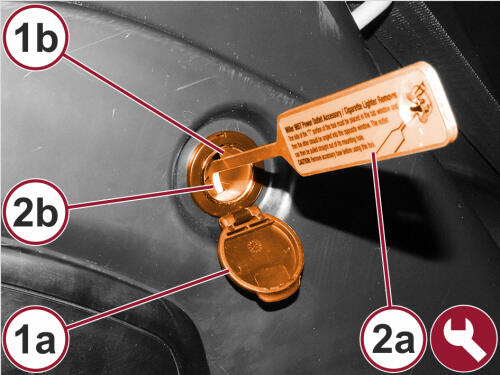

- Working from the left side of the rear cargo compartment, open the cover (1a) of the outlet (1b).
- Engage the appropriate tool (2a) in the socket, then carefully remove the socket (1b) itself.

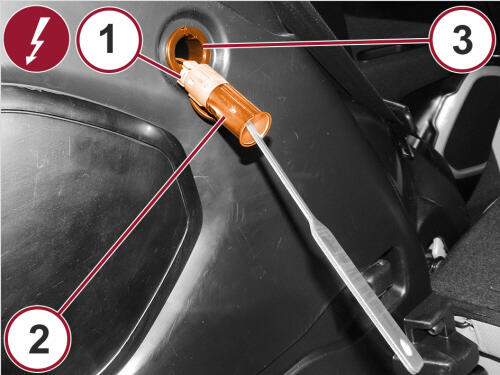

- Disconnect the power outlet electrical connection (1).
- Remove the socket (2).
- If necessary, remove the flange cover.
