Removal And Installation: Installation
WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Installation of the Blind Spot Monitoring (BSM) system will not distort the sensors or cause changes in any operating characteristics

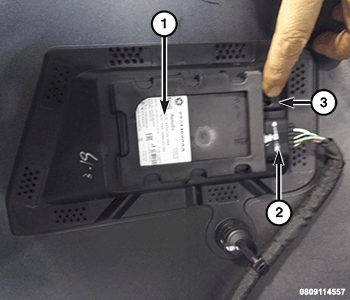

- Reach up behind the outboard end of the rear bumper fascia to position the Left Blind Spot Sensor (LBSS) or Right Blind Spot Sensor (RBSS) (1) to the mounting bracket on the inside surface of the fascia.
- Using hand pressure, press the LBSS or RBSS (1) firmly and evenly into the mounting bracket until the latch tab (3) of the bracket is fully engaged.
- Connect the LBSS or RBSS sensor wiring harness connector (2).
- Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
- Connect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.
