Description And Operation: Operation
WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

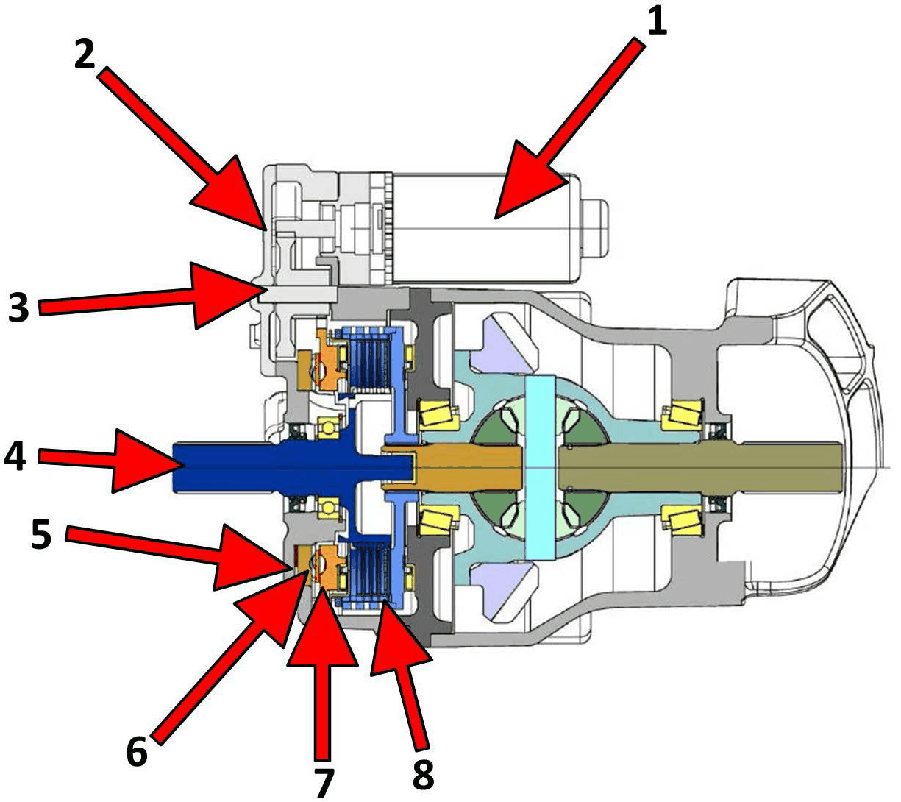

| 1 | Actuator | 2 | Junction point between the actuator shaft and transfer wheel |
| 3 | Transfer wheel | 4 | Intermediate drive shaft |
| 5 | Guides on RDM casing | 6 | Balls |
| 7 | Guides on piston | 8 | Clutch |
The Drivetrain Control Module (DTCM) uses the Rear Driveline Module (RDM) actuator in order to transmit torque from the differential to the rear wheels, activating the actuator to increase or decrease the pressure on the clutch, inside the RDM.
