Cable, Shift: Installation

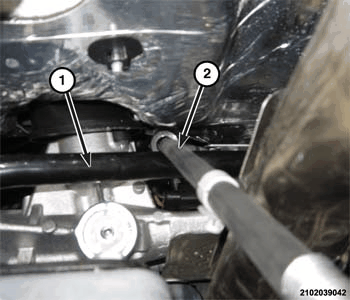

GC0159566Courtesy of CHRYSLER GROUP, LLC
  1. Position the shifter cable (2) into the vehicle.
    NOTE:

    Exhaust and heat shield are removed for clarity.

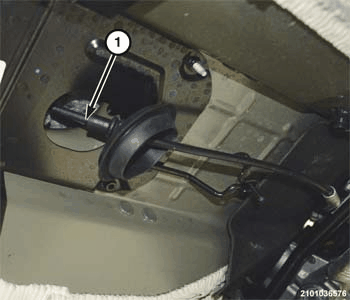

    GC0159430Courtesy of CHRYSLER GROUP, LLC
  2. Push the shifter cable (1) up through the floor pan.

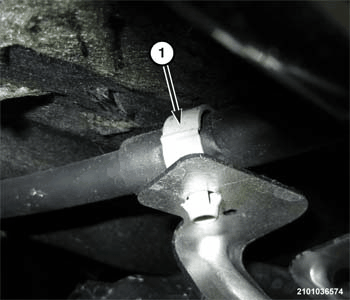

    GC0159588Courtesy of CHRYSLER GROUP, LLC
  3. Attach the shifter cable to the clip (1) attached to the steering gear.

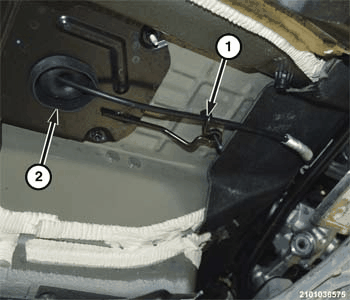

    GC0159642Courtesy of CHRYSLER GROUP, LLC
  4. Attach the shifter cable grommet (2) to the floor pan.
  5. Attach the shifter cable to the support bracket (1).

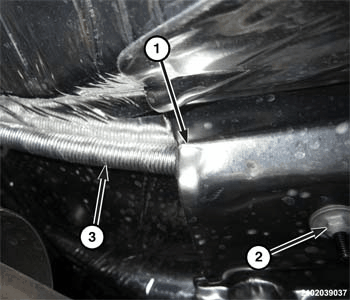

    GC0159997Courtesy of CHRYSLER GROUP, LLC
  6. Position the heat shield (1) in place and install the heat shield fasteners (2).
  7. Attach the front sway bar links to the sway bar and tighten to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  8. Lower the vehicle.

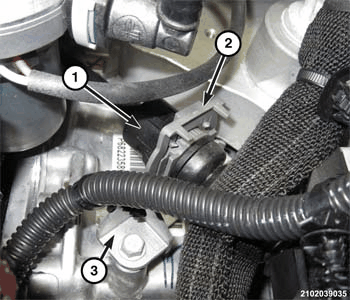

    GC0159530Courtesy of CHRYSLER GROUP, LLC
  9. Attach the shifter cable (1) in the shifter cable bracket (3) on the transmission and engage the lock (2).

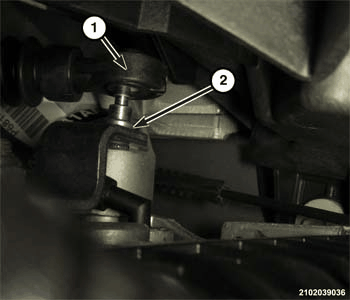

    GC0159366Courtesy of CHRYSLER GROUP, LLC
  10. Attach the shifter cable end (1) to the manual lever (2).
    NOTE:

    Make sure the transmission is in Park by rotating the manual lever to its forward most position.

  11. Install the Powertrain Control Module (PCM) bracket to the battery tray.
  12. Install the PCM. Refer to MODULE, POWERTRAIN CONTROL (PCM), INSTALLATION .
    GC0159621Courtesy of CHRYSLER GROUP, LLC
  13. Attach the shifter cable (4) to the shifter bracket (1) on the steering column and engage the lock (3).

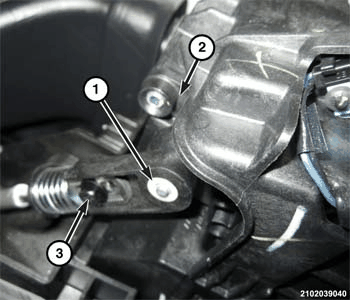

    GC0159532Courtesy of CHRYSLER GROUP, LLC
  14. With shifter in the Park position, attach the shifter cable end (1) to the shifter (2).
  15. If necessary, adjust the shifter cable. Refer to CABLE, SHIFT, ADJUSTMENTS .
  16. Place the shifter in the Neutral position by manually releasing the Brake Ignition Transmission Shifter Interlock (BITSI). Refer to SHIFT, BRAKE INTERLOCK, STANDARD PROCEDURE .

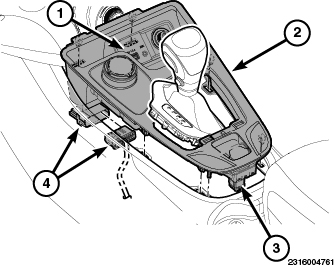

    GC0160083Courtesy of CHRYSLER GROUP, LLC
  17. Insert the shifter bezel through the console bezel (2).
  18. If equipped, connect the mode switch wire harness connector (4).
  19. Connect the park brake wire harness connector (3).
  20. Install the console bezel (2) to the console.

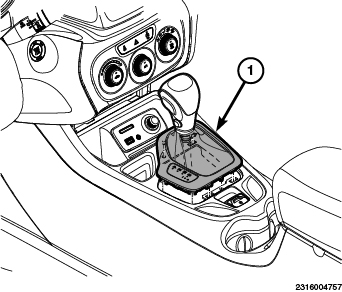

    GC0159874Courtesy of CHRYSLER GROUP, LLC
  21. Install the shifter bezel (1) to the console bezel.
    GC0159414Courtesy of CHRYSLER GROUP, LLC
  22. Install the console front trim (3).
  23. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
