Isolator, Rear CROSSMEMBER, Frame: Removal
- Remove the rear crossmember. Refer to CROSSMEMBER, REAR SUSPENSION, REMOVAL .NOTE:
Prior to using pressing tools, lubricate the screw-type threads to provide ease of use and promote tool longevity.

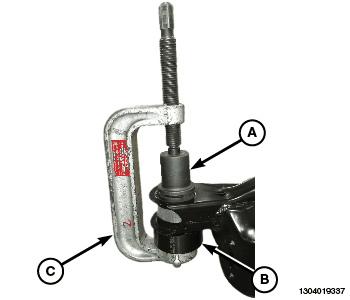

- Assemble tools over isolator crossmember assembly as shown:
- (special tool #9958-3, Installer, Bushing)
- (special tool #10106-2, Receiver, Depth Setting)
- (special tool #C-4212F, Press, Ball Joint)
- Tighten Ball Joint Press (C) screw-drive, pressing isolator out of the crossmember.
