Isolator, Rear CROSSMEMBER, Differential: Installation

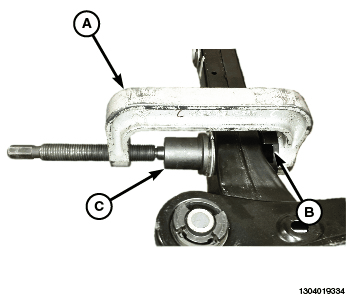

GC0159540Courtesy of CHRYSLER GROUP, LLC
NOTE:

Prior to using pressing tools, lubricate the screw-type threads to provide ease of use and promote tool longevity.

  1. Assemble tools over isolator crossmember assembly as shown:
    1. (special tool #C-4212F, Press, Ball Joint)
    2. (special tool #9031-4, Installer, Bushing)
    3. Pusher 9958-3 of (special tool #9958, Remover/Installer, Axle Bushing)
  2. Tighten the Ball Joint Press (A) screw-drive, pressing isolator into crossmember. Install isolator until isolator can flange contacts surface of crossmember.
  3. Remove the tools.

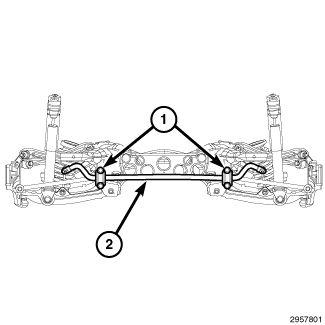

    GC0146325Courtesy of CHRYSLER GROUP, LLC
  4. Position the stabilizer bar (2) and install the upper and lower stabilizer bar to cradle bolts (1) and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
  5. Install the rear differential. Refer to INSTALLATION .
