Hitch, Trailer: Installation

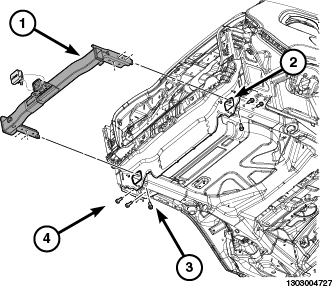

GC0159406Courtesy of CHRYSLER GROUP, LLC
  1. Position the hitch (1) back into the frame openings (2).
  2. Install the bolts (3, 4) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
