Bottle, Pressurized Coolant: Installation: 3.2L

Courtesy of CHRYSLER GROUP, LLC

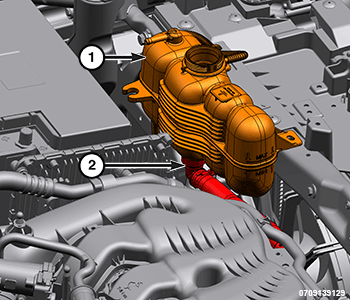

1. Install the lower coolant hose (2) to the pressurized coolant bottle (1).

   Courtesy of CHRYSLER GROUP, LLC

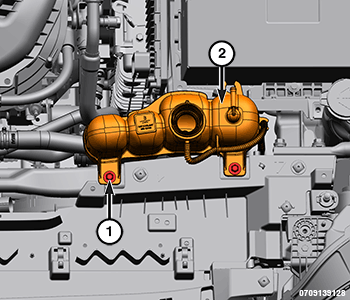

2. Install the pressurized coolant bottle (2) and tighten the bolts (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS - 3.2L  .

   Courtesy of CHRYSLER GROUP, LLC

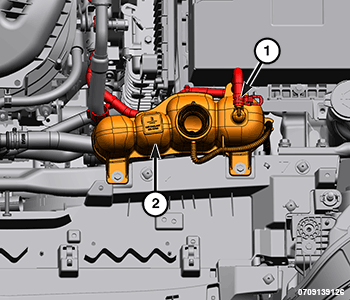

3. Install the coolant hose (1) to the pressurized coolant bottle (2).

   Courtesy of CHRYSLER GROUP, LLC

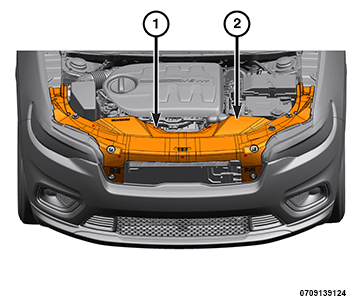

4. Install the radiator closure panel (2) and the push pins (1).
5. Fill the cooling system air evacuation. Refer to COOLANT SYSTEM AIR EVACUATION  .
6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
