Sensor, Manifold Absolute Pressure (Map): Removal: 3.2L

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Unlock and disconnect the electrical connector (1) from the MAP sensor.

   Courtesy of CHRYSLER GROUP, LLC

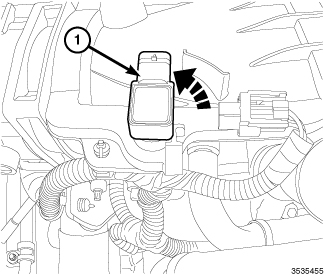

3. Rotate the MAP sensor (1) 1/4 turn counterclockwise and pull the sensor straight up and out of the upper intake manifold.

   Courtesy of CHRYSLER GROUP, LLC

4. The MAP sensor O-ring (1) can be reused if not damaged.
