Pedal, Accelerator: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0162298Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the accelerator pedal wire harness connector.

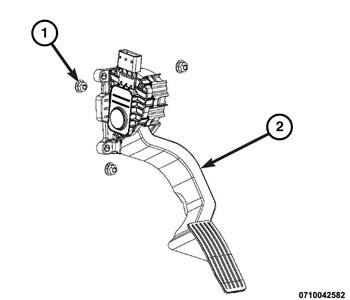

  3. Remove the accelerator pedal nuts (1) and the accelerator pedal assembly from the vehicle (2).
