Capacitor, Ignition: Removal: 2.4L

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover. .
    GC0186398Courtesy of CHRYSLER GROUP, LLC

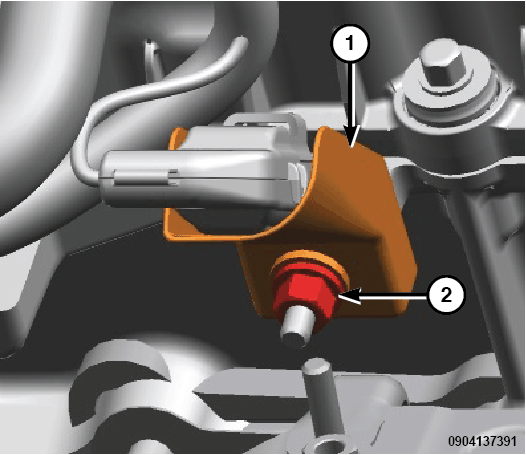

  3. Remove the nut (2) and the capacitor heat shield (1).
    GC0186854Courtesy of CHRYSLER GROUP, LLC

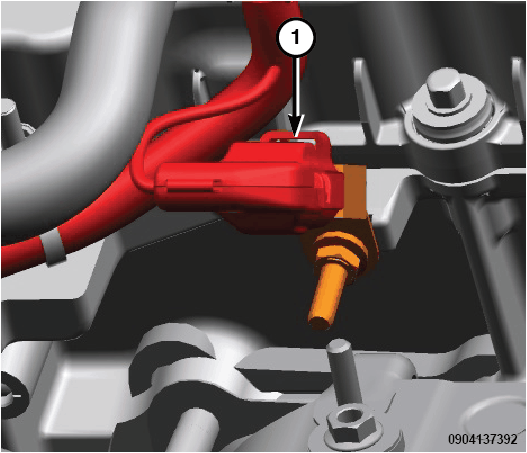

  4. Disconnect the wire harness connector (1).
    GC0186694Courtesy of CHRYSLER GROUP, LLC

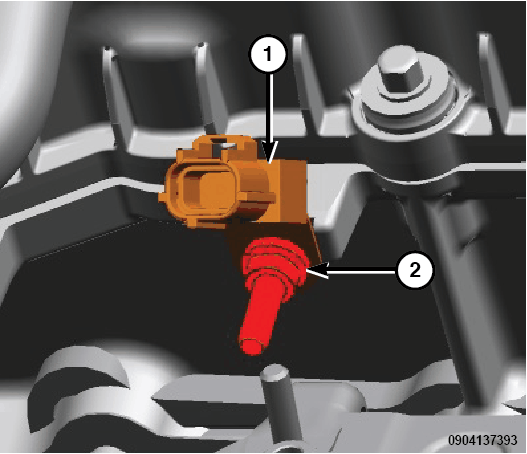

  5. Remove stud bolt (2) and ignition capacitor (1) from the front of the cylinder head.
