3.2L Description

Courtesy of CHRYSLER GROUP, LLC

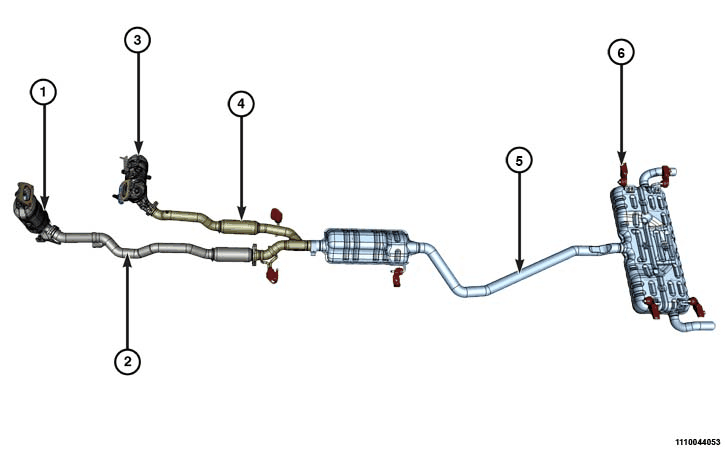

The following components makeup the exhaust system for the 3.2L engine:

• Front mounted catalytic converter (1)
• Rear mounted catalytic converter (3)
• Cross-under pipe (2)
• Y-pipe (4)
• Resonator/Muffler assembly (5)
• Band clamps and Exhaust isolators (6)

The upstream oxygen sensors are located in the exhaust manifolds. The downstream oxygen sensors are located in the catalytic converters.
