Removal And Installation: Right: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

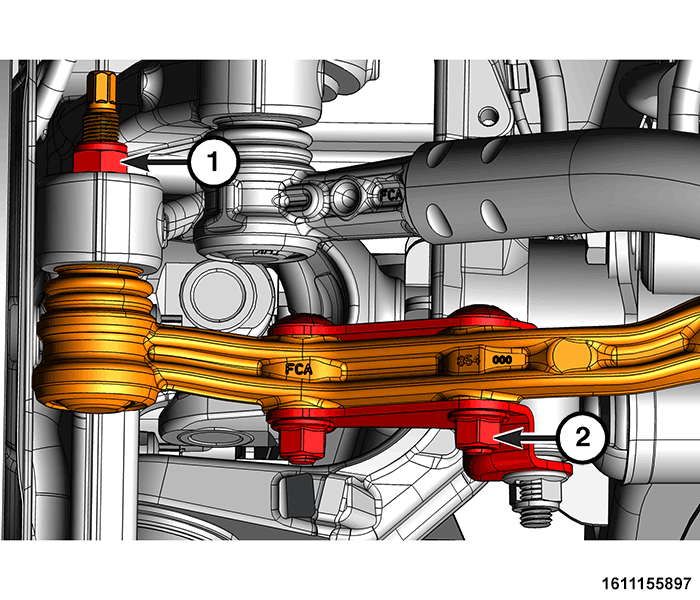

   1 - Tie Rod End Nut

   2 - Steering Damper Bracket Nuts

3. Remove the two steering damper bracket nuts and bolts.
4. Remove and DISCARD  the tie rod end nut.
   NOTE:

   Hold the end of the ball stud with a wrench when removing or installing the nuts to prevent damage to the tie rod.

5. Separate the tie rod end from the steering knuckle using (special tool #9360, Remover, Ball Joint).

   Courtesy of CHRYSLER GROUP, LLC

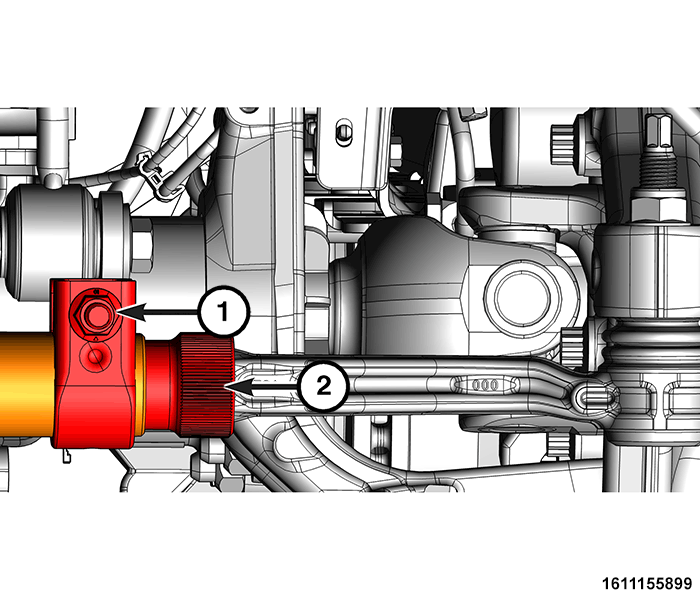

   1 - Tie Rod End Adjuster Clamp

   2 - Adjuster Sleeve

6. Loosen the tie rod end adjuster clamp.
   NOTE:

   Count the number of turns when removing the tie rod end. This will give a good starting point for reassembly and toe adjustment.

7. Rotate the adjuster sleeve to disengage the left tie rod from the right tie rod.
   NOTE:

   The tie rod assembly features an alignment pin, the adjustment sleeve MUST  be rotated to "walk" the left tie rod out of the right tie rod.

INSTALLATION

During installation, torque the fasteners to the specifications in the torque table(s) below.

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Install a NEW  tie rod end nut.
• Set the toe. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .

TORQUE SPECIFICATIONS
