Removal And Installation: Front: Installation

Courtesy of CHRYSLER GROUP, LLC

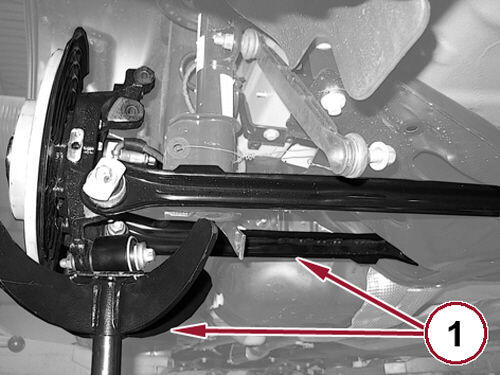

1. With a suitable jack raise the rear suspension and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

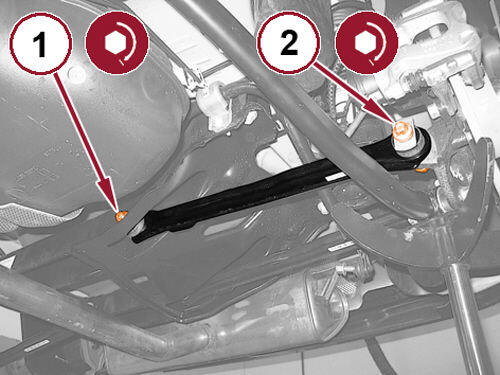

2. Position the front lower control arm into the vehicle.
3. Install the front lower control arm to crossmember bolt (1).
4. Install a NEW  front lower control arm to knuckle bolt (2).
5. Tighten the front lower control arm to crossmember bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
6. Tighten the NEW  front lower control arm to knuckle bolt (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
7. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
8. Remove the support and lower the vehicle.
9. Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
