Mid Power Outlet: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0165612Courtesy of CHRYSLER GROUP, LLC

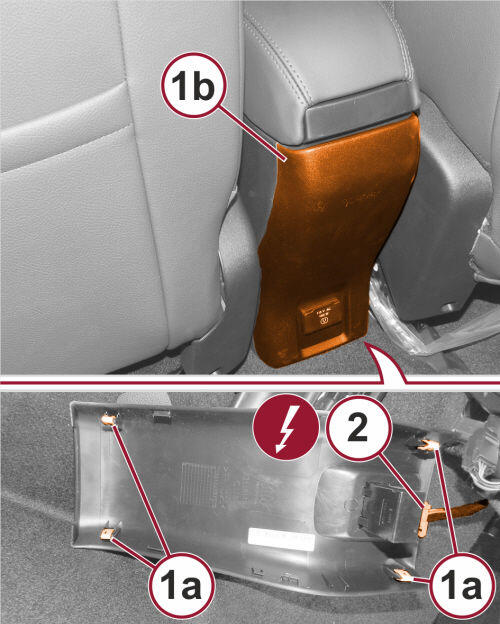

  2. Using a suitable tool, remove the floor console rear cover (1b) by disengaging the retainer clips (1a).
  3. Disconnect the mid power outlet wire harness connector (2).
    GC0162993Courtesy of CHRYSLER GROUP, LLC

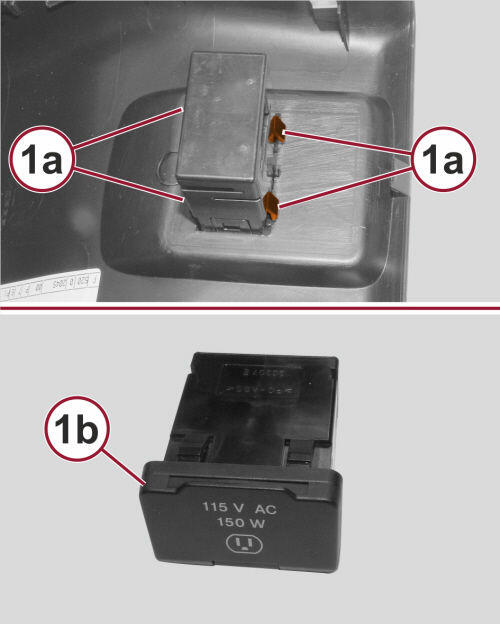

  4. Release the retainers (1a) and remove the mid power outlet (1b).
