Front Power Outlet: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front floor console to gain access to the back side of the accessory outlet panel. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .

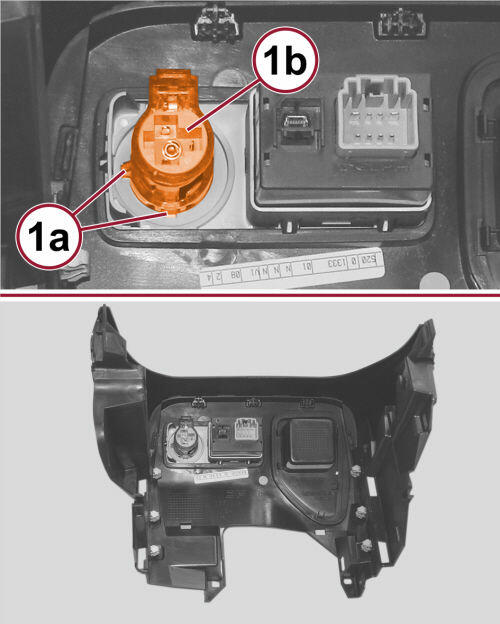

    GC0164325Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector from the front power outlet.
  4. Release the retaining clips (1a) and remove the front power outlet (1b).
