Removal And Installation: Front: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .

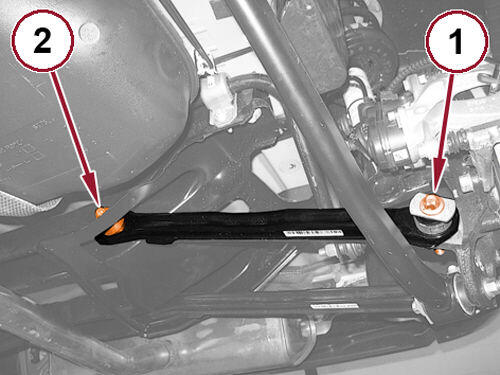

    GC0165533Courtesy of CHRYSLER GROUP, LLC
  3. Remove and DISCARD  the front lower control arm to knuckle bolt (1).
  4. Remove the front lower control arm to crossmember bolt (2), and remove the front lower control arm.
