Removal And Installation: Installation

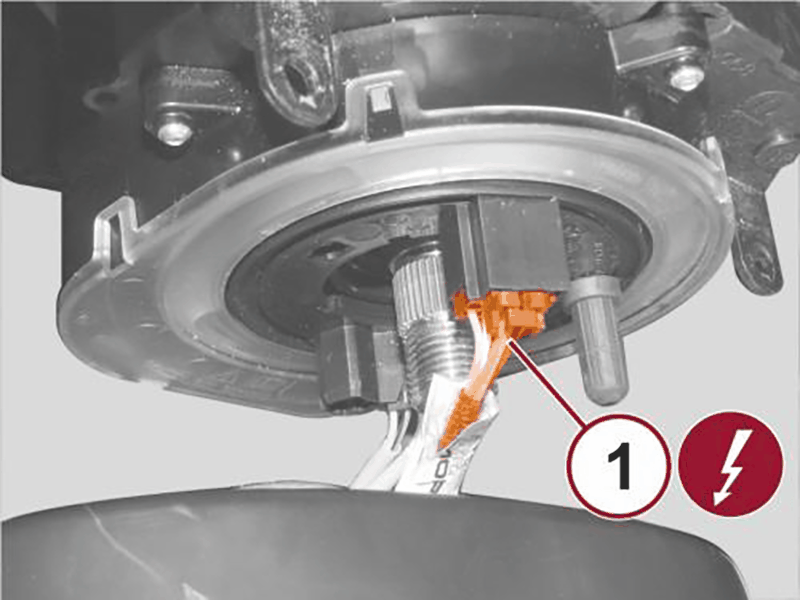

GC0208221Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the steering wheel switches.
  2. Connect the steering wheel wire harness connector (1).
  3. Position the steering wheel to the shaft, aligning the references on the steering wheel and on the steering column.

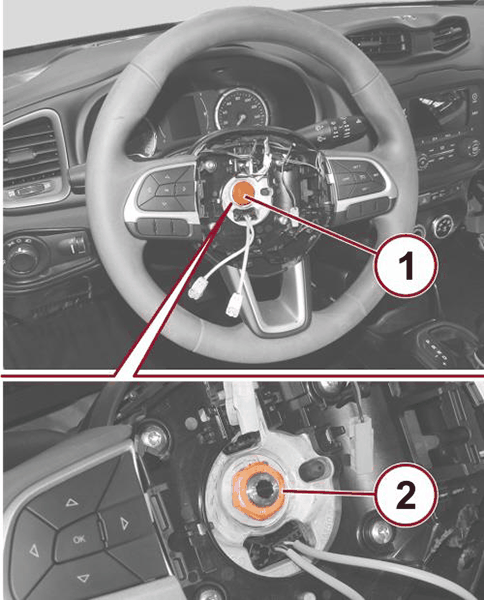

    GC0208222Courtesy of CHRYSLER GROUP, LLC
  4. Install the steering wheel nut (2) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  5. Install the steering wheel nut cover (1).
  6. Install the drivers airbag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
