Switch, Transfer Case: Installation

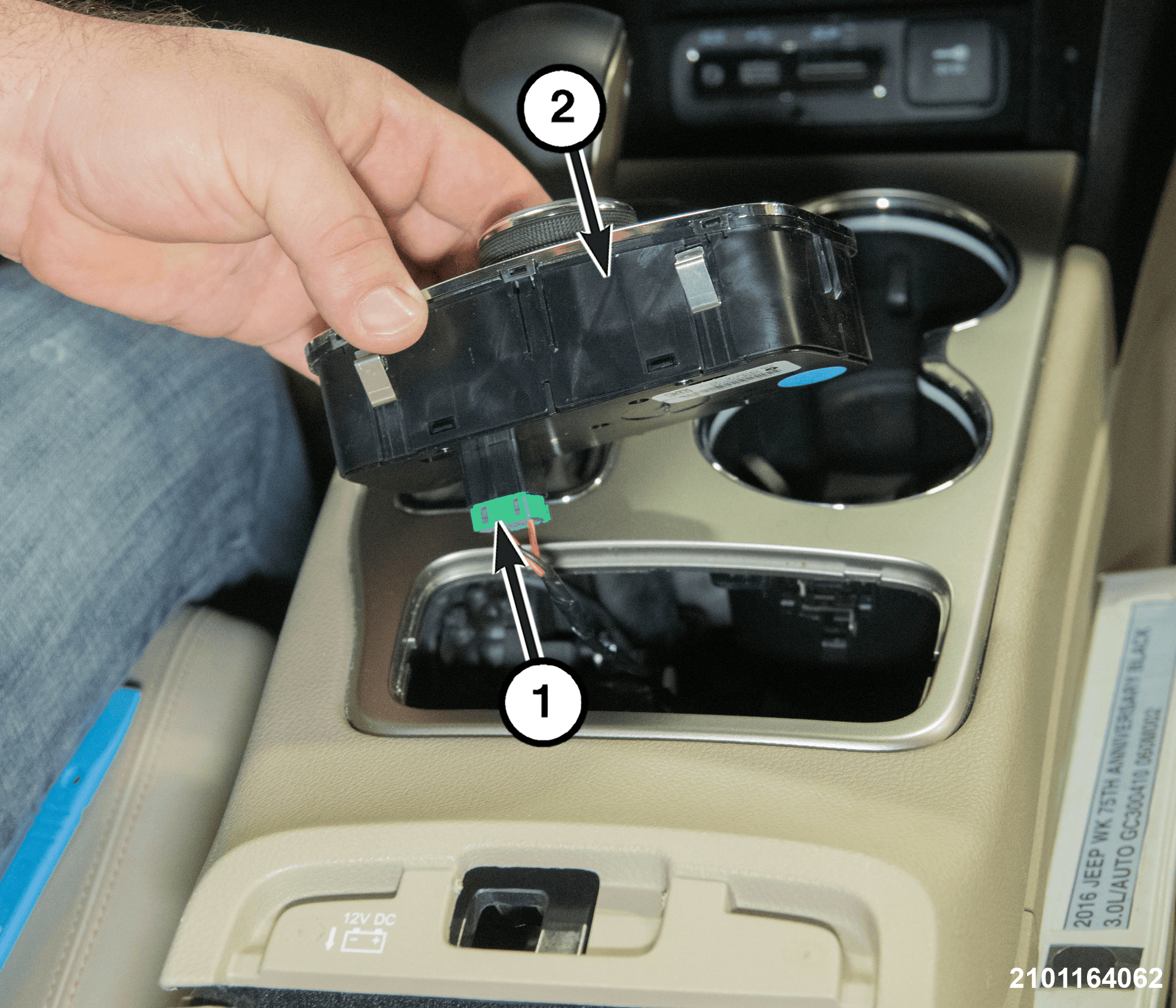

GC0192177Courtesy of CHRYSLER GROUP, LLC
  1. Connect the transfer case switch wire harness connector (1) to the transfer case switch (2).

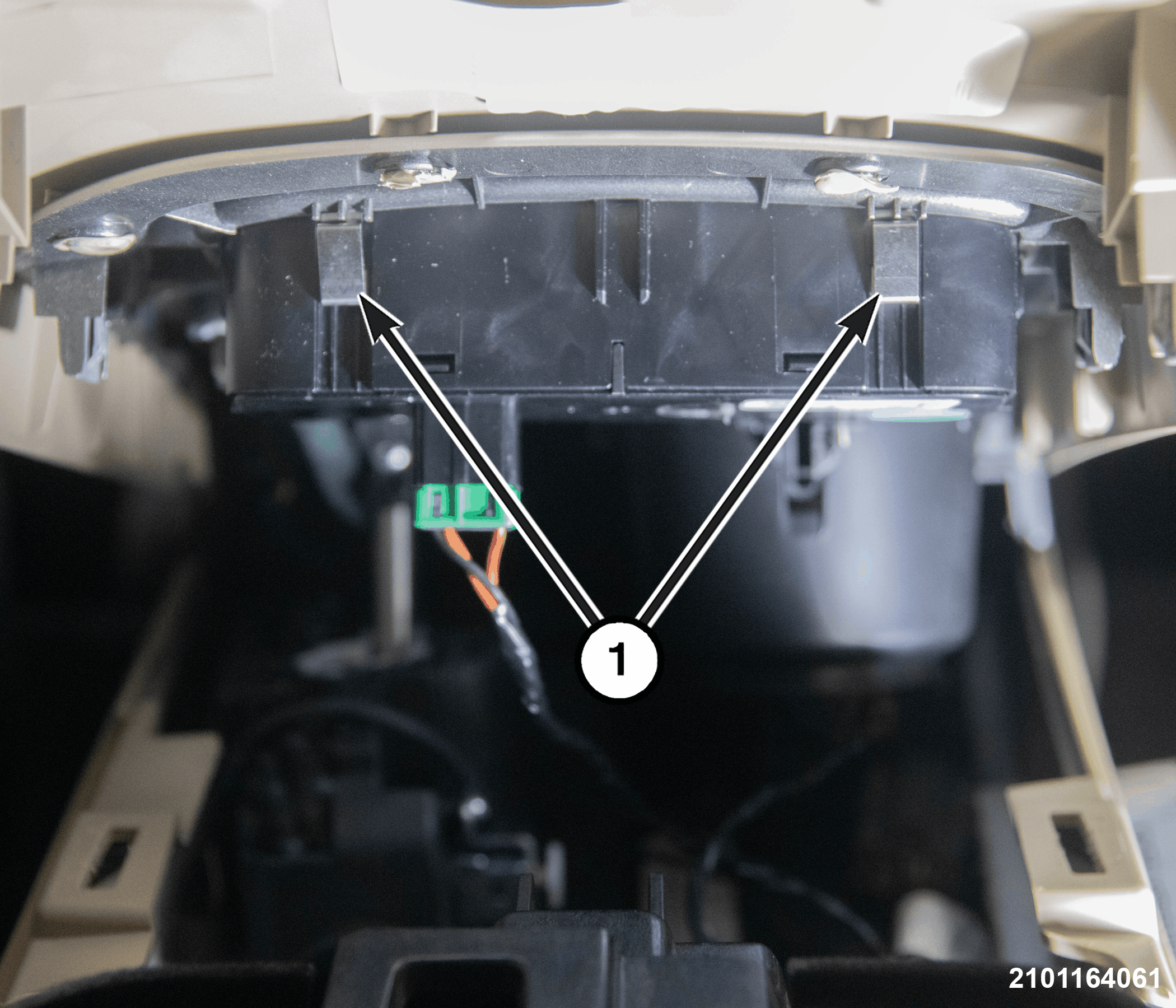

    GC0192205Courtesy of CHRYSLER GROUP, LLC
  2. Insert the transfer case switch into the gear shifter bezel, be sure that the lock tabs (1) are fully engaged.
  3. Snap the gear shifter bezel to the center floor console.
