Sensor, Charge Air Cooler Temperature: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Apply MOPAR™ thread sealant with PFTE to sensor threads.

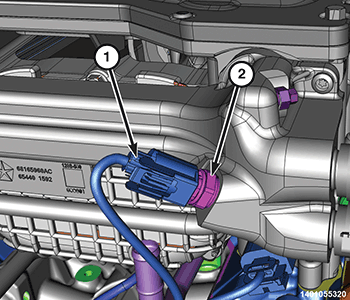

2. Install the charge air cooler temperature sensor (2) into the coolant crossover manifold and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS  .
3. Connect the charge air cooler temperature sensor wire harness connector (1).
4. Install the cowl panel cover. Refer to COVER, COWL PANEL, INSTALLATION .
5. Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION  .
6. Connect the negative battery cable.
