3.6L Coolant Crossover

Courtesy of CHRYSLER GROUP, LLC

Clean the gasket sealing surfaces.

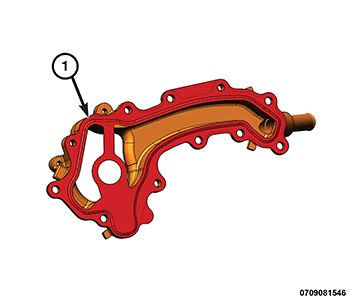

Install a NEW gasket (1) on the coolant crossover.

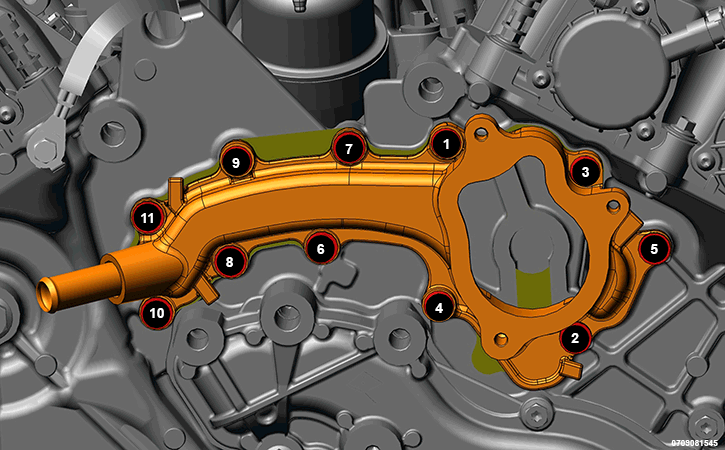

Fig 1: Coolant Crossover Bolts Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The shorter M6 mounting bolts bolt directly to the engine timing cover.
Install the coolant crossover. Using the tightening sequence shown, tighten the bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS .

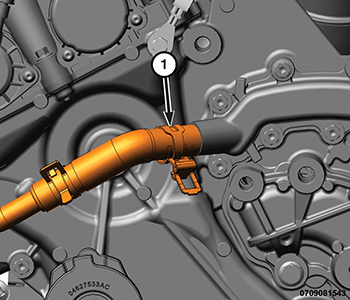

Courtesy of CHRYSLER GROUP, LLC
Install the heater supply hose (1) to the coolant crossover.
Install the thermostat housing. Refer to THERMOSTAT, INSTALLATION .
